Percutaneous interventional cardiovascular medicine: The PCR-EAPCI Textbook

Diagnosis

The leading symptom of ACS is typically chest pain. The working diagnosis of NSTE-ACS is a rule-out diagnosis based on the ECG, i.e., lack of persistent ST elevation. Biomarkers (troponins) further distinguish NSTEMI and unstable angina. Imaging modalities are used to rule-out or rule-in differential diagnoses. Diagnosis finding and risk stratification are closely linked.

CLINICAL PRESENTATION

The clinical presentation of NSTE-ACS encompasses a wide variety of symptoms. Traditionally, several clinical presentations have been distinguished:

Prolonged (>20 min) anginal pain at rest;
New onset (de novo) angina (Class II or III of the Classification of the Canadian Cardiovascular Society);
Recent destabilisation of previously stable angina with at least Canadian Cardiovascular Society Class III angina characteristics (crescendo angina); or
Post MI angina.

The typical clinical presentation of NSTE-ACS is retrosternal pressure or heaviness (“angina”) radiating to the left arm, neck or jaw, which may be intermittent (usually lasting for several minutes) or persistent. These complaints may be accompanied by other symptoms such as diaphoresis, nausea, abdominal pain, dyspnoea, and syncope. However, atypical presentations are not uncommon. These include epigastric pain, indigestion, stabbing chest pain, chest pain with some pleuritic features, or increasing dyspnoea. Atypical complaints are more often observed in older (>75 years) patients, in women, and in patients with diabetes, chronic renal failure, or dementia. Absence of chest pain leads to under-recognition and under-treatment of the disease. The diagnostic and therapeutic challenges arise especially when the ECG is normal or nearly normal, or conversely when the ECG is abnormal at baseline due to underlying conditions such as intraventricular conduction defects or left ventricular (LV) hypertrophy.

Certain features, in terms of the symptoms, may support the diagnosis of CAD and guide patient management. The exacerbation of symptoms by physical exertion, or their relief at rest or after the administration of nitrates, supports a diagnosis of ischaemia. It is important to identify clinical circumstances that may exacerbate or precipitate NSTE-ACS, such as anaemia, infection, inflammation, fever, and metabolic or endocrine (in particular thyroid) disorders.

When faced with a symptomatic patient, the presence of several clinical findings increases the probability of CAD and therefore NSTE-ACS. These include older age, male sex, a positive family history, and known atherosclerosis in non-coronary territories, such as peripheral or carotid artery disease. The presence of risk factors, in particular diabetes mellitus and renal insufficiency as well as prior manifestation of CAD (i.e., previous MI, percutaneous intervention [PCI] or coronary bypass graft surgery [CABG]), also raises the likelihood of NSTE-ACS.

DIAGNOSTIC TOOLS

Electrocardiogram
The resting 12-lead ECG is the first-line diagnostic tool in the assessment of patients with suspected NSTE-ACS. It should be obtained within 10 minutes after first medical contact (either arrival of the patient in the emergency room or first contact with emergency medical services in the pre-hospital setting) and immediately interpreted by a qualified physician. The characteristic ECG abnormalities of NSTE-ACS are ST-segment depression or transient elevation and/or T-wave changes [2]. The finding of persistent (>20 min) ST-elevation suggests STEMI, which mandates an alternative triage and treatment approach ( View chapter ).

FOCUS BOX 1A 12-lead ECG should be obtained within 10 minutes after medical contact

Biomarkers
Cardiac troponins play a central role in establishing a diagnosis and stratifying risk, and make it possible to distinguish between NSTEMI and unstable angina. Troponins are more specific and sensitive than the traditional cardiac enzymes such as creatine kinase (CK), its isoenzyme MB (CK-MB), and myoglobin. Elevation of cardiac troponins reflects myocardial cellular damage, which in NSTE-ACS may result from distal embolisation of platelet-rich thrombi from the site of a ruptured or eroded plaque. In the setting of myocardial ischaemia (chest pain, ECG changes, new wall-motion abnormalities) troponin elevation indicates MI [2].

In patients with MI, an initial rise in troponins occurs within 2 to 4 hours after symptom onset. Troponins may remain elevated for up to 2 weeks due to proteolysis of the contractile apparatus. In NSTE-ACS, minor troponin elevations usually resolve within 48-72 hours.

In the clinical setting, a test with a high ability to rule out (negative predictive value) and correctly diagnose ACS (positive predictive value) is of paramount interest. The diagnostic cut-off for MI is defined as a cardiac troponin measurement exceeding the 99th percentile of a normal reference population (upper reference limit) using an assay with an imprecision (coefficient of variation) of ≤10% at the upper reference limit. Recently, high-sensitivity and ultra-sensitive assays have been introduced that have a 10- to 100-fold lower limit of detection and fulfil the requirements of analytical precision. Therefore, high-sensitivity assays are recommended over less sensitive tests [72].

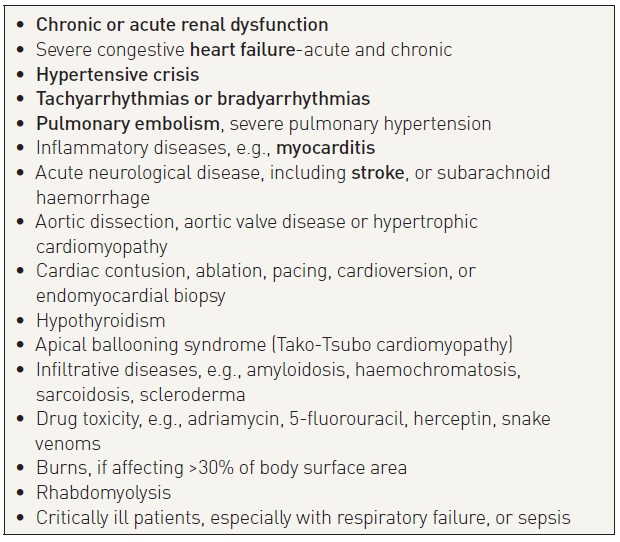

Owing to the improved analytical sensitivity, low troponin levels can now also be detected in many patients with chronic coronary syndrome and stable angina [3] and in healthy individuals [4]. The underlying mechanisms of this troponin release are not yet sufficiently elucidated, but any measurable troponin is associated with an unfavourable prognosis. In order to maintain specificity for MI, there is now an emerging need to distinguish chronic from acute troponin elevation. Therefore, the magnitude of change depending on the initial value gains importance to differentiate acute from chronic myocardial damage.

In contrast to other biomarkers, only CK-MB and copeptin seem to have clinical relevance for the diagnosis of NSTE-ACS. CK-MB shows a more rapid decline after MI than cardiac troponin and may provide additional information by detection of early reinfarction. Parallel measurement of copeptin may quantify the endogenous stress level in multiple medical conditions including MI and therefore adds significant value to conventional (particularly less sensitive) cardiac troponin assays to rule out ACS [73, 74, 75].

Due to the higher sensitivity and diagnostic accuracy for the detection of acute MI, the time interval to the second cardiac troponin assessment can be significantly reduced with the use of high-sensitivity assays. As an alternative to the 0 h/3 h algorithm, a 0 h/1 h protocol is recommended when high-sensitivity cardiac troponin assays with a validated algorithm are available. The negative predictive value for MI in patients assigned ‘rule-out’ exceeded 98% in several large validation cohorts. The positive predictive value for MI in those patients meeting the ‘rule-in’ criteria was 75–80% [76, 77, 78, 79]. For rapid rule-out, two alternative approaches to the 0 h/1 h or 0 h/3 h algorithms have been adequately validated and may be considered. First, a 2-h rule-out protocol combining the Thrombolysis in Myocardial Infarction (TIMI) risk score with ECG and high-sensitivity cardiac troponin at presentation allowed a safe rule-out in up to 40% of patients. Second, a dual-marker strategy combining normal levels of cardiac troponin together with low levels of copeptin (10 pmol/l) at presentation had very high negative predictive value for MI [73, 74, 75].

Other life-threatening conditions presenting with chest pain, such as dissecting aortic aneurysm or pulmonary embolism, may also result in elevated troponins and should always be considered in a differential diagnosis. Elevation of cardiac troponins also occurs in the setting of non-coronary-related myocardial injury ( Table 1). This reflects the sensitivity of the marker for myocardial cell injury and should not be labelled as a false positive. Truly false-positive results have been documented in the setting of skeletal myopathies or chronic renal failure. Elevated troponin levels are frequently found when the serum creatinine level is >2.5 mg/dL (221 μmol/L) in the absence of proven ACS, and this elevation is associated with an adverse prognosis [5]. However, high-sensitivity cardiac troponin assays also maintain high diagnostic accuracy in patients with renal dysfunction. To ensure the best possible clinical application, it is important to use assay-specific optimal cut-off levels that are higher in patients with renal dysfunction [80].

Invasive imaging (coronary angiography)

Coronary angiography provides unique information on the presence and severity of CAD and therefore remains the gold standard. It is recommended to perform angiograms before and after intracoronary administration of vasodilators (nitrates) in order to attenuate vasoconstriction and offset the dynamic component that is frequently present in ACS. In haemodynamically compromised patients (e.g., with pulmonary oedema, hypotension, severe life-threatening arrhythmias) it may be advisable to perform the examination after placement of an intra-aortic balloon pump, to limit the number of coronary injections, and to abstain from LV angiography. Angiography should be performed urgently (< 2 hours) for diagnostic purposes in patients at high risk and in whom the differential diagnosis is unclear. The identification of acute thrombotic occlusions (e.g., circumflex artery) is particularly important in patients with ongoing symptoms or relevant troponin elevation but in the absence of diagnostic ECG changes.

Data from the Thrombolysis In Myocardial Infarction (TIMI)-3B [6] and Fragmin during Instability in Coronary Artery Disease-2 (FRISC-2) [7] studies show that 30%-38% of patients with unstable coronary syndromes have single-vessel disease and 44%-59% have multivessel disease (>50% diameter stenosis). The incidence of left main narrowing varies from 4% to 8%. Patients with multivessel disease as well as those with left main stenosis are at the highest risk of serious cardiac events. Coronary angiography in conjunction with ECG findings and regional wall motion abnormalities frequently allows identification of the culprit lesion. Typical angiographic features are eccentricity, irregular borders, ulceration, haziness, and filling defects suggestive of the presence of intracoronary thrombus. In lesions whose severity is difficult to assess, intravascular ultrasound or fractional flow reserve (FFR) measurements carried out more than 5 days after the index event are useful in order to decide on the treatment strategy.

The choice of vascular access site depends on operator expertise and local preference, but due to the large impact of bleeding complications on clinical outcome in patients with elevated bleeding risk, the decision is important. Accordingly, ESC guidelines strongly recommend the radial access for the past several years. This is based on the large MATRIX radial trial: among 8404 patients with NSTEMI or STEMI there was a significant reduction in the incidence of the combined endpoint that included cardiovascular death, stroke, and myocardial infarction using the radial approach as compared with the femoral approach [90]. This was mainly due to a significant reduction in the number of major bleeding events and in overall mortality (1.6% vs. 2.2%, p=0.045). These results were further confirmed by a large meta-analysis [91]. Therefore, the radial access site is preferred in patients at high risk of bleeding provided the operator has sufficient experience with this technique. The radial approach has a lower risk of large hematomas at the price of higher radiation dose for patients and staff [8]. The femoral approach may be preferred in hemodynamically compromised patients to facilitate of the use of extracorporeal membrane oxygenation (ECMO) support.

FOCUS BOX 2The radial approach reduces the risk of bleeding compared with the femoral approach

DIFFERENTIAL DIAGNOSES

Several cardiac and non-cardiac conditions may mimic NSTE-ACS ( Table 2). Underlying chronic conditions such as hypertrophic cardiomyopathy and valvular heart disease (i.e., aortic stenosis, aortic regurgitation) may be associated with typical symptoms of NSTE-ACS, elevated cardiac biomarkers, and ECG changes. Sometimes symptoms associated with paroxysmal atrial fibrillation may mimic ACS. Since some of these patients also have CAD, the diagnostic process can be difficult. In addition, myocarditis, pericarditis, or myopericarditis of different aetiologies may be associated with chest pain that resembles the typical angina of NSTE-ACS, and can be associated with a rise in cardiac biomarker levels, ECG changes, and wall motion abnormalities.

In assessment of patients with potential ACS, non-cardiac life-threatening conditions must be ruled out. Among these, pulmonary embolism may be associated with dyspnoea, chest pain, and ECG changes, as well as elevated levels of cardiac biomarkers similar to those of NSTE-ACS. Aortic dissection is the other condition to be considered as an important differential diagnosis. NSTE-ACS may be a complication of aortic dissection when the dissection involves the coronary arteries.

Treatment

ANTI-ISCHAEMIC AGENTS

Anti-ischaemic drugs either decrease myocardial oxygen demand (by decreasing heart rate, lowering blood pressure, reducing preload or reducing myocardial contractility) or increase myocardial oxygen supply (by inducing coronary vasodilatation).

ANTIPLATELET AGENTS

Platelet activation and subsequent aggregation play a dominant role in the propagation of arterial thrombosis and consequently are the key therapeutic targets in the management of ACS. Antiplatelet therapy should be instituted as early as possible when the diagnosis of NSTE-ACS is made in order to reduce the risk of both acute ischaemic complications and recurrent atherothrombotic events. Platelets can be inhibited by three classes of drugs, each of which has a distinct mechanism of action.

Aspirin (acetyl salicylic acid)
Based on studies performed 30 years ago, aspirin reduces the incidence of recurrent MI or death in patients with what was then called unstable angina (odds ratio [OR] 0.47; CI: 0.37-0.61; p<0.001) [14]. A loading dose of chewed, plain aspirin between 150 and 300 mg is recommended. Intravenous aspirin is an alternative mode of application, but has not been investigated in trials and is not available everywhere. A daily maintenance dose of 75-100 mg has the same efficacy as higher doses and carries a lower risk of gastrointestinal intolerance, [15] which may require drug discontinuation in up to 1% of patients.

FOCUS BOX 4Aspirin should be given to all patients with NSTE-ACS

P2Y12 receptor inhibitors

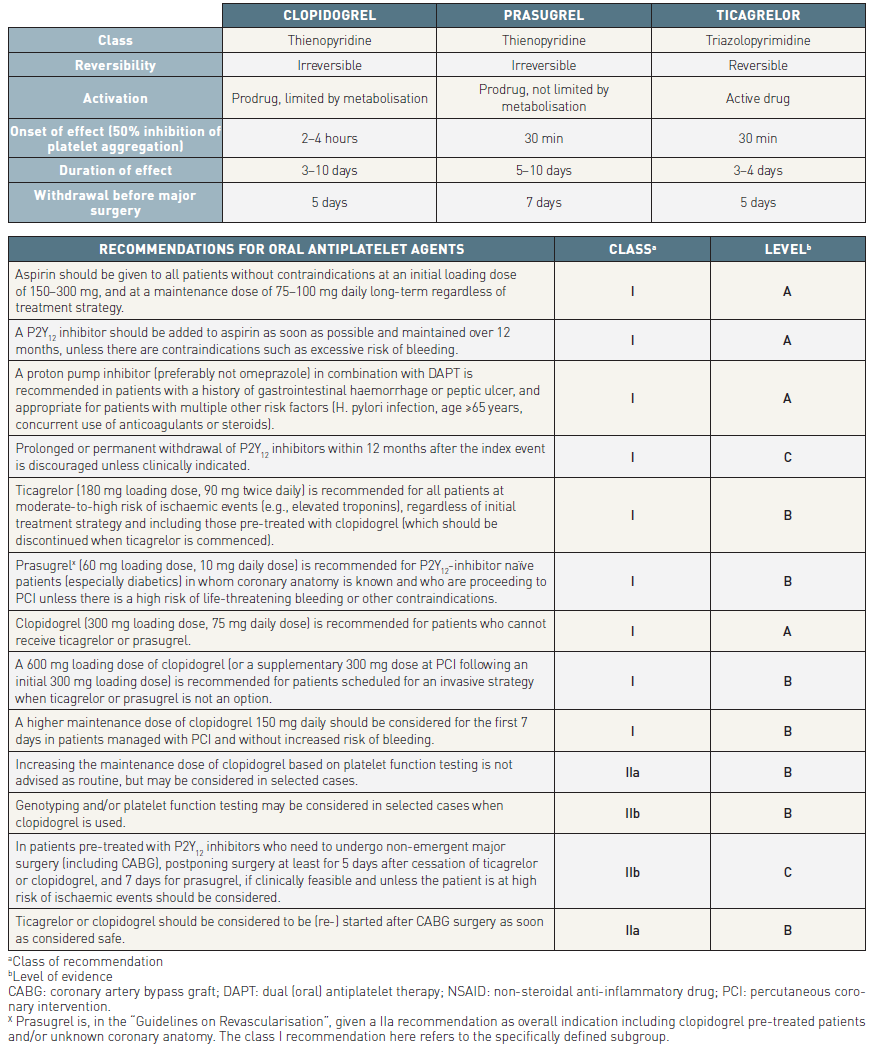

An overview of the P2Y12 receptor inhibitors is given in Table 5A.

In the Clopidogrel in Unstable Angina to Prevent Recurrent Events (CURE) trial, a clopidogrel hydrogen sulphate 300 mg loading dose followed by 75 mg daily maintenance for 9-12 months in addition to aspirin reduced the incidence of cardiovascular death and non-fatal MI or stroke compared with aspirin alone (9.3% vs. 11.4%; RR 0.80; 95% CI: 0.72-0.90; p<0.001) in patients with NSTE-ACS associated with elevated cardiac markers or ST segment depression on ECG or age >60 years with prior CAD history [16].

An increase in the rate of major bleeding events was observed with clopidogrel (3.7% vs. 2.7%; RR 1.38; 95% CI: 1.13–1.67;p = 0.001), but with a non-significant increase in life-threatening and fatal bleeds [16]. However, in the entire cohort, including patients submitted to revascularisation by either PCI or CABG, the benefit of clopidogrel treatment outweighed the risk of bleeding. Treating 1, 000 patients resulted in 21 fewer cardiovascular deaths, MIs, or strokes, at the cost of an excess of seven patients requiring transfusion and a trend for four patients to experience life-threatening bleeds.

The 600 mg loading dose of clopidogrel has a more rapid onset of action and more potent inhibitory effect than the 300 mg dose [17]. There is wide variability in the pharmacodynamic response to clopidogrel linked to several factors, including genotype polymorphisms. Clopidogrel is converted to its active metabolite through two steps in the liver, which are dependent on cytochrome P450 (CYP) isoenzymes including CYP3A4 and CYP2C19.

Prasugrel
Prasugrel requires two metabolic steps for formation of its active metabolite, which is chemically similar to the active metabolite of clopidogrel [18]. The first metabolic step requires only plasma esterases; the second step, in the liver, is the only step mediated by CYP enzymes. Consequently prasugrel produces more rapid and consistent platelet inhibition compared with clopidogrel [19]. Response to prasugrel does not appear to be affected significantly by CYP inhibitors, including proton pump inhibitors, or loss-of-function variants of the CYP2C19 gene; nor is it affected by reduced ABCB1 function.

In the TRITON-TIMI 38 trial, a prasugrel 60 mg loading dose followed by 10 mg daily was compared with a clopidogrel 300 mg loading dose and then 75 mg daily in clopidogrel-naïve patients undergoing PCI, either primary PCI for STEMI or for recent STEMI or moderate-to-high risk NSTE-ACS once coronary angiography had been performed [19]. The composite primary endpoint (cardiovascular death, non-fatal MI, or stroke) occurred in 11.2% of clopidogrel-treated patients and in 9.3% of prasugrel-treated patients (HR 0.82; 95% CI: 0.73–0.93; p= 0.002), mostly driven by a significant risk reduction for MI (9.2% to 7.1%; relative risk reduction [RRR] 23.9%; 95% CI: 12.7–33.7; p<0.001) [19]. There was no difference in the rates of either non-fatal stroke or cardiovascular death. In the whole cohort, the rate of definite or probable stent thrombosis (as defined by the ARC) was significantly reduced in the prasugrel group compared with the clopidogrel group (1.1% vs. 2.4%, respectively; HR 0.48; 95% CI: 0.36–0.64; p<0.001). The corresponding figures for NSTE-ACS patients are not available. In the whole cohort, there was a significant increase in the rate of non–CABG-related TIMI major bleeding (2.4% vs. 1.8%; HR 1.32; 95% CI: 1.03–1.68; p= 0.03), mostly driven by a significant increase in spontaneous bleeds (1.6% vs. 1.1%; HR 1.51; 95% CI: 1.09–2.08; p= 0.01), but not by bleeding related to arterial access (0.7% vs. 0.6%; HR 1.18; 95% CI: 0.77–1.82; p= 0.45), which means that long-term exposure to a potent antiplatelet agent is the determinant of bleeding. Life-threatening bleeding was significantly increased under prasugrel with 1.4% vs. 0.9% (HR 1.52; 95% CI: 1.08–2.13; p= 0.01) as well as fatal bleeding with 0.4% vs. 0.1% (HR 4.19; 95% CI: 1.58–11.11; p= 0.002) with prasugrel compared to clopidogrel. There was evidence of net harm with prasugrel in patients with a history of cerebrovascular events [19+81]. In addition, there was no apparent net clinical benefit in patients over 75 years of age and in patients with low body weight (<60 kg). Greater benefit without increased risk of bleeding was observed in diabetic patients. There was no difference in efficacy in patients with (CrCl <60 mL/min) or without (CrCl >60 mL/min) renal impairment.

In the recently published ISARREACT 5 trial a total 4,018 patients presented with acute coronary syndrome were randomly assigned to receive either ticagrelor or prasugrel [96]. The primary end point was the composite of death, myocardial infarction, or stroke at 1 year. A major secondary end point (the safety end point) was bleeding. A primary-end point event occurred in 184 of 2012 patients (9.3%) in the ticagrelor group and in 137 of 2006 patients (6.9%) in the prasugrel group (hazard ratio, 1.36; P = 0.006). The respective incidences of the individual components of the primary end point in the ticagrelor group and the prasugrel group were as follows: death, 4.5% and 3.7%; myocardial infarction, 4.8% and 3.0%; and stroke, 1.1% and 1.0%. Definite or probable stent thrombosis occurred in 1.3% of patients assigned to ticagrelor and 1.0% of patients assigned to prasugrel, and definite stent thrombosis occurred in 1.1% and 0.6%, respectively. Major bleeding (as defined by the Bleeding Academic Research Consortium scale) was observed in 5.4% of patients in the ticagrelor group and in 4.8% of patients in the prasugrel group (hazard ratio, 1.12; 95% CI, 0.83 to 1.51; P = 0.46). Therefore, patients who presented with acute coronary syndromes with or without ST-segment elevation seem to higher benefit from a therapy with prasugrel in absence of any contraindications.

Ticagrelor

Ticagrelor belongs to a novel chemical class, cyclopentyl-triazolopyrimidine, and is an oral, reversibly binding P2Y12 inhibitor with a plasma half-life of approximately 12 hours. The level of P2Y12 inhibition is determined by the plasma ticagrelor level and, to a lesser extent, an active metabolite. Like prasugrel, it has a more rapid and consistent onset of action compared with clopidogrel, but additionally it has a quicker offset of action so that recovery of platelet function is faster ( Table 5B) [20].

In the PLATelet inhibition and patient Outcomes (PLATO) trial, patients with either moderate-to-high risk NSTE-ACS (planned for either conservative or invasive management) or STEMI planned for primary PCI were randomised to either clopidogrel 75 mg daily, with a loading dose of 300 mg, or ticagrelor 180 mg loading dose followed by 90 mg twice daily [21]. Patients undergoing PCI were allowed to receive an additional blinded 300 mg loading dose of clopidogrel clopidogrel (total loading dose 600 mg) or placebo and were also recommended to receive an additional 90 mg of ticagrelor (or placebo) if >24 h had elapsed since the initial loading dose. Treatment was continued for up to 12 months, with a minimum intended treatment duration of 6 months, and a median duration of study drug exposure of 9 months [21]. In the overall cohort, the primary composite efficacy endpoint (death from vascular causes, MI, or stroke) was reduced with ticagrelor compared with clopidogrel [10.0% vs.12.3%; HR 0.83 (95% CI 0.74, 0.93), P = 0.0013], with similar reductions for cardiovascular death [3.7% vs. 4.9%; HR 0.77 (95% CI 0.64, 0.93), P = 0.007] and all-cause mortality [4.3% vs. 5.8%; HR 0.76 (95% CI 0.64, 0.90), P=0.002]. Differences in bleeding event rates were also similar in the NSTE-ACS subgroup compared with the overall study, with increased risk of non-CABG-related PLATO-defined major bleeds with ticagrelor compared with clopidogrel [4.8% vs.3.8%; HR 1.28 (95% CI 1.05, 1.56), P = 0.0139] but no difference in life-threatening or fatal bleeds. The benefits of ticagrelor compared with clopidogrel in NSTE-ACS were independent of whether or not revascularization was performed in the first 10 days after randomization [82].

The rate of definite stent thrombosis was reduced from 1.9% to 1.3% (p<0.01) and total mortality from 5.9% to 4.5% (p<0.001). Overall there was no significant difference in PLATO-defined major bleeding rates between the clopidogrel and ticagrelor groups (11.2% vs. 11.6%, respectively; p= 0.43). Major bleeding unrelated to CABG surgery was increased from 3.8% in the clopidogrel group to 4.5% in the ticagrelor group (HR 1.19; 95% CI: 1.02–1.38; p= 0.03).

In addition to increased rates of minor or non–CABG-related major bleeding with ticagrelor, adverse effects include dyspnoea, increased frequency of ventricular pauses, and asymptomatic increases in uric acid. The dyspnoea induced by ticagrelor occurs most frequently (up to 15%) within the first week of treatment and may be transient or persist until cessation of treatment, however it does not appear to be associated with any deterioration in cardiac or pulmonary function.

Nevertheless due to the results from the ISARREACT 5 trial, mentioned above, ticacrelor is a effective alternative, particularly in presence of any contraindications for prasugrel.

Prolonged dual antiplatelet therapy (DAPT)

Several studies suggest that DAPT continued after the first year results in the reduction of major adverse cardiovascular and cerebral events (MACCE). The prolonged DAPT trial included patients who were on DAPT including ASA and clopidogrel one year after stent implantation [92]. Patients continued DAPT/placebo for a further 18 months. Overall, the trial revealed a significant reduction of acute stent thrombosis and MACCE, although a significantly higher bleeding rate and a higher overall mortality were identified. Further subgroup analysis revealed that the MACCE rate was only significantly reduced in patients with ACS. Interestingly, the rate of myocardial infarction and stent thrombosis was significantly reduced in both groups, patients with and without ACS [92]. Prolonged DAPT that included ticagrelor was examined by the PEGASUS trial [93]. A total of 21,162 patients who had had NSTEMI or STEMI within the last 3 years were randomized to either ticagrelor (60 mg or 90 mg twice daily) or placebo. After 3 years of therapy the combined primary endpoint of myocardial infarction and stroke was significantly reduced (1.1% vs. 1.2%; p=0.008). No differences were identified for cardiovascular death (p=0.06). Ticagrelor doses of 90 mg and 60 mg yielded similar results. Comparable to the DAPT trial, however, the bleeding risk (TIMI major) was at least doubled after prolonged ticagrelor therapy (90 mg: 2.6%, 60 mg: 2.3%; placebo 1.06%). Nevertheless, no significant differences were observed regarding fatal and intracranial bleeding events. These results were confirmed by a large meta-analysis including 33,435 patients after ACS with prolonged ticagrelor therapy [94]. Due to a significantly higher rate of severe bleeding events, however, indication for prolonged DAPT should be restricted to patients with a high cardiovascular risk profile. Further subanalyses should be able to pinpoint which specific patient groups may profit from prolonged DAPT, including those with higher bleeding risk.

FOCUS BOX 5All patients with NSTE-ACS should receive either Prasugrel or Ticagrelor unless there are contraindications over at least 12 months

Shortened period of dual antiplatelet therapy (DAPT)

The greatest anti-ischaemic benefit of potent antiplatelet drugs occurs early, while most excess bleeding events arise during chronic treatment. Therefore, shortened period of DAPT may provide benefit especially in patient with high risk for bleeding complications.

In this context the TROPICAL-ACS trial randomized 2,610 if they had biomarker-positive acute coronary syndrome with successful PCI and a planned duration of dual antiplatelet treatment of 12 months [97]. Enrolled patients were randomly assigned (1:1) to either standard treatment with prasugrel for 12 months (control group) or a step-down regimen (1 week prasugrel followed by 1 week clopidogrel and PFT-guided maintenance therapy with clopidogrel or prasugrel from day 14 after hospital discharge; guided de-escalation group). The primary endpoint was net clinical benefit (cardiovascular death, myocardial infarction, stroke or bleeding grade 2 or higher according to Bleeding Academic Research Consortium [BARC]) criteria) 1 year after randomisation. It occurred in 95 patients (7%) in the guided de-escalation group and in 118 patients (9%) in the control group (pnon-inferiority=0.0004; hazard ratio [HR] 0·81 [95% CI 0.62-1.06], p for superiority=0.12). Despite early de-escalation, there was no increase in the combined risk of cardiovascular death, myocardial infarction, or stroke in the de-escalation group (32 patients [97]) versus in the control group (42 patients [97]; p for non-inferiority=0.0115). Hence early de-escalation of antiplatelet treatment may be considered in selected patients with acute coronary syndrome managed with PCI and high risk of bleeding.

The Ticagrelor with Aspirin or Alone in High-Risk Patients after Coronary Intervention (TWILIGHT) trial was recently published [98]. The randomised trial examined the effect of ticagrelor alone as compared with ticagrelor plus aspirin with regard to clinically relevant bleeding among patients who were at high risk for bleeding or an ischemic event and had undergone PCI. The primary end point was Bleeding Academic Research Consortium (BARC) type 2, 3, or 5 bleeding. In the trial in total 9,006 patients were enrolled and 7,119 patients were randomised after 3 months. Nearly 30% of included patients received PCI due to NSTE-ACS. The incidence of the primary end point was 4.0% among patients randomly assigned to receive ticagrelor plus placebo and 7.1% among patients assigned to receive ticagrelor plus aspirin (hazard ratio, 0.56; 95% confidence interval [CI], 0.45 to 0.68; P<0.001). The difference in risk between the groups was similar for BARC type 3 or 5 bleeding (incidence, 1.0% among patients receiving ticagrelor plus placebo and 2.0% among patients receiving ticagrelor plus aspirin; hazard ratio, 0.49; 95% CI, 0.33 to 0.74). The incidence of death from any cause, nonfatal myocardial infarction, or nonfatal stroke was 3.9% in both groups (difference, −0.06 percentage points; 95% CI, −0.97 to 0.84; hazard ratio, 0.99; 95% CI, 0.78 to 1.25; P<0.001 for noninferiority).

The Effect of 1-Month Dual Antiplatelet Therapy Followed by Clopidogrel vs 12-Month Dual Antiplatelet Therapy on Cardiovascular and Bleeding Events in Patients Receiving PCI were examined in the STOPDAPT-2 Randomized Clinical Trial [99]. Among 3045 included 38% needed PCI due to NSTE-ACS. Patients were randomized either to 1 month of DAPT followed by clopidogrel monotherapy (n=1523) or to 12 months of DAPT with aspirin and clopidogrel (n=1522). One-month DAPT was both noninferior and superior to 12-month DAPT for the primary end point, occurring in 2.36% with 1-month DAPT and 3.70% with 12-month DAPT (absolute difference, −1.34% [95% CI, −2.57% to −0.11%]; hazard ratio [HR], 0.64 [95% CI, 0.42-0.98]), meeting criteria for noninferiority (P < 0.001) and for superiority (P = 0.04). The major secondary cardiovascular end point occurred in 1.96% with 1-month DAPT and 2.51% with 12-month DAPT (absolute difference, −0.55% [95% CI, −1.62% to 0.52%]; HR, 0.79 [95% CI, 0.49-1.29]), meeting criteria for noninferiority (P = 0.005) but not for superiority (P = 0.34). The major secondary bleeding end point occurred in 0.41% with 1-month DAPT and 1.54% with 12-month DAPT (absolute difference, −1.13% [95% CI, −1.84% to −0.42%]; HR, 0.26 [95% CI, 0.11-0.64]; P = 0.004 for superiority). The results have only limited clinical value, since Clopidogrel is only second choice P2Y12 inhibitor in ACS. However, the results confirm that aspirin can safely be stopped early in ACS without increasing the risk for ischaemic events.

Glycoprotein IIb/IIIa receptor inhibitors
The three GP IIb/IIIa receptor inhibitors approved for clinical use are intravenous (IV) agents belonging to different classes: abciximab is a monoclonal antibody fragment; eptifibatide is a cyclic peptide; and tirofiban is a peptidomimetic molecule. A meta-analysis of 29,570 patients initially medically managed and planned for PCI showed a moderate 9% RRR in death or non-fatal MI with GP IIb/IIIa receptor inhibitors (10.7% vs. 11.5%; p= 0.02) [22]. No reduction in death or MI was seen in purely medically managed patients receiving GP IIb/IIIa receptor inhibitors versus placebo. The only significant benefit was observed when GP IIb/IIIa receptor inhibitors were maintained during PCI (10.5% vs. 13.6%; OR 0.74; 95% CI: 0.57–0.96; p= 0.02). The use of GP IIb/IIIa receptor inhibitors was associated with an increase in major bleeding complications, but intracranial bleeding was not significantly increased. Many of the older trials with these inhibitors were carried out in the absence of clopidogrel or newer P2Y12 inhibitors.

Upstream versus procedural initiation of GP IIb/IIIa receptor inhibitors
In the ACUITY Timing trial, deferred selective (only during PCI) versus routine upstream administration of any GP IIb/IIIa receptor inhibitor was tested among 9, 207 patients in a 2 x 2 factorial design [23]. The net clinical outcome (incorporating both the ischaemic outcomes and major bleeding) at 30 days was similar (11.7% vs. 11.7%; RR 1.00; 95% CI: 0.89–1.11; p= 0.93; p-value for non-inferiority <0.001).

The Early Glycoprotein IIb/IIIa Inhibition in Non-ST-Segment Elevation Acute Coronary Syndrome (EARLY-ACS) trial randomised 9,492 patients assigned to an invasive strategy to early eptifibatide or placebo with provisional use of eptifibatide after angiography for PCI [24]. The primary endpoint was a composite of death, MI, recurrent ischaemia requiring urgent revascularisation, or the occurrence of “thrombotic bail-out” (thrombotic complication during PCI that required the use of the bailout kit) at 96 hours. There was no significant reduction in the primary outcome in the early versus delayed provisional eptifibatide groups (9.3% vs. 10.0%; OR 0.92; 95% CI: 0.80–1.06; p= 0.23). Major bleeding rates were higher among patients assigned to early eptifibatide compared with delayed provisional therapy (TIMI major bleed at 120 h, 2.6% vs. 1.8%; OR 1.42; 95% CI: 1.97–1.89; p= 0.015). Accordingly, this trial demonstrated no advantage with a routine upstream use of eptifibatide in an invasive strategy compared to a delayed provisional strategy in the setting of contemporary antithrombotic therapy, where the minority of patients having PCI received eptifibatide in the delayed provisional arm.

Consistent across the trials is the signal for higher rates of bleeding with upstream GP IIb/IIIa treatment. Thus it is reasonable to withhold GP IIb/IIIa receptor inhibitors until after diagnostic angiography. In patients undergoing PCI their use can be based on angiographic results (e.g., presence of thrombus and extent of disease), troponin elevation, previous treatment with a P2Y12 inhibitor, patient age, and other factors influencing the risk of serious bleeding [25, 26]. Upstream use of GP IIb/IIIa receptor inhibitors may be considered if there is active ongoing ischaemia among high-risk patients or where DAPT is not feasible. Patients who receive initial treatment with eptifibatide or tirofiban before angiography should be maintained on the same drug during and after PCI.

Comparative efficacy of GP IIb/IIIa receptor inhibitors
Abciximab was tested in the setting of PCI in a head-to-head comparison versus tirofiban in the TARGET trial, in which two-thirds of the patients had NSTE-ACS [27]. Abciximab was shown to be superior to tirofiban in standard doses in reducing the risk of death, MI, and urgent revascularisation at 30 days, but the difference was not significant at 6 months. Further trials explored higher doses of tirofiban in various clinical settings and the results of meta-analyses suggest that high-dose bolus tirofiban (25 μg/kg followed by infusion) has similar efficacy to abciximab [28]. There are no comparable data for eptifibatide.

Combination of GP IIb/IIIa receptor inhibitors with aspirin and a P2Y12 inhibitor
Limited data are available about the benefits of adding a GP IIb/IIIa receptor inhibitor to the combination of aspirin with a P2Y12 inhibitor in the setting of NSTE-ACS. In the Intracoronary Stenting and Antithrombotic Regimen: Rapid Early Action for Coronary Treatment-2 (ISAR-REACT-2) trial, 2, 022 high-risk NSTE-ACS patients were randomised following pretreatment with aspirin and 600 mg of clopidogrel to either abciximab or placebo during PCI. The 30-day composite endpoint of death, MI, or urgent target vessel revascularisation occurred significantly less frequently in abciximab-treated patients versus placebo (8.9% vs. 11.9%; RR 0.75; 95% CI: 0.58–0.97; p= 0.03). Most of the risk reduction with abciximab resulted from a reduction in death and non-fatal MI.

In the TRITON and PLATO trials the rates of use of GP IIb/IIIa receptor inhibitors were 55% and 27%, respectively. Patients receiving a GP IIb/IIIa receptor inhibitor in the TRITON trial had higher rates of TIMI major and minor non-CABG bleeding, but use of a GP IIb/IIIa receptor inhibitor did not influence the relative risk of bleeding with prasugrel compared to clopidogrel (p-value for interaction 0.19).

Prasugrel reduced rates of death, MI, or stroke compared to clopidogrel, both with (6.5% vs. 8.5%; HR 0.76; 95% CI: 0.64–0.90) and without (4.8% vs. 6.1%; HR 0.78; 95% CI: 0.63–0.97) GP IIb/IIIa receptor inhibitors. In the PLATO trial, ticagrelor also reduced rates of death, MI, or stroke in patients receiving (10.0% vs. 11.1%; HR 0.90; 95% CI: 0.76–1.07) or not receiving (9.7% vs. 11.9%; HR 0.82; 95% CI: 0.74–0.92) a GP IIb/IIIa receptor inhibitor [21].

Overall, it is reasonable to reserve combination therapy with a GP IIb/IIIa receptor inhibitor in addition toaspirin and a P2Y12 inhibitor for patients with NSTE-ACS undergoing PCI that are deemed to have a high risk of procedural MI and an absence of high risk for bleeding.

Glycoprotein IIb/IIIa inhibitors and adjunctive anticoagulant therapy
Most trials showing benefits of GP IIb/IIIa receptor inhibitors used an anticoagulant. Several trials in the field of NSTE-ACS, as well as observational studies in PCI, have shown that LMWH, predominantly enoxaparin, can be safely used with GP IIb/IIIa receptor inhibitors without compromising efficacy, although subcutaneous enoxaparin alone does not adequately protect against catheter thrombosis during primary PCI, despite this combination. In the Fifth Organization to Assess Strategies in Acute Ischemic Syndromes (OASIS-5) trial, GP IIb/IIIa receptor inhibitors were used with aspirin, clopidogrel, and either fondaparinux or enoxaparin [29]. Overall, bleeding complications were lower with fondaparinux than with enoxaparin. Bivalirudin and unfractionated heparin [UFH]/LMWH were shown to have equivalent safety and efficacy when used with aspirin, clopidogrel, and a GP IIb/IIIa receptor inhibitor in the ACUITY trial [30]. The combination of bivalirudin and a GP IIb/IIIa receptor inhibitor results in a similar rate of ischaemic events compared with bivalirudin alone, but is associated with a higher rate of major of bleeding events [31]. Thus, this combination cannot be recommended for routine use.

Glycoprotein IIb/IIIa receptor inhibitors

The three GP IIb/IIIa receptor inhibitors approved for clinical use are intravenous (IV) agents belonging to different classes: abciximab is a monoclonal antibody fragment; eptifibatide is a cyclic peptide; and tirofiban is a peptidomimetic molecule. A meta-analysis of 29,570 patients initially medically managed and planned for PCI showed a moderate 9% RRR in death or non-fatal MI with GP IIb/IIIa receptor inhibitors (10.7% vs. 11.5%; p= 0.02) [22]. No reduction in death or MI was seen in purely medically managed patients receiving GP IIb/IIIa receptor inhibitors versus placebo. The only significant benefit was observed when GP IIb/IIIa receptor inhibitors were maintained during PCI (10.5% vs. 13.6%; OR 0.74; 95% CI: 0.57–0.96; p= 0.02). The use of GP IIb/IIIa receptor inhibitors was associated with an increase in major bleeding complications, but intracranial bleeding was not significantly increased. Many of the older trials with these inhibitors were carried out in the absence of clopidogrel or newer P2Y12 inhibitors.

Upstream versus procedural initiation of GP IIb/IIIa receptor inhibitors

In the ACUITY Timing trial, deferred selective (only during PCI) versus routine upstream administration of any GP IIb/IIIa receptor inhibitor was tested among 9, 207 patients in a 2 x 2 factorial design [23]. The net clinical outcome (incorporating both the ischaemic outcomes and major bleeding) at 30 days was similar (11.7% vs. 11.7%; RR 1.00; 95% CI: 0.89–1.11; p= 0.93; p-value for non-inferiority <0.001).

The Early Glycoprotein IIb/IIIa Inhibition in Non-ST-Segment Elevation Acute Coronary Syndrome (EARLY-ACS) trial randomised 9,492 patients assigned to an invasive strategy to early eptifibatide or placebo with provisional use of eptifibatide after angiography for PCI [24]. The primary endpoint was a composite of death, MI, recurrent ischaemia requiring urgent revascularisation, or the occurrence of “thrombotic bail-out” (thrombotic complication during PCI that required the use of the bailout kit) at 96 hours. There was no significant reduction in the primary outcome in the early versus delayed provisional eptifibatide groups (9.3% vs. 10.0%; OR 0.92; 95% CI: 0.80–1.06; p= 0.23). Major bleeding rates were higher among patients assigned to early eptifibatide compared with delayed provisional therapy (TIMI major bleed at 120 h, 2.6% vs. 1.8%; OR 1.42; 95% CI: 1.97–1.89; p= 0.015). Accordingly, this trial demonstrated no advantage with a routine upstream use of eptifibatide in an invasive strategy compared to a delayed provisional strategy in the setting of contemporary antithrombotic therapy, where the minority of patients having PCI received eptifibatide in the delayed provisional arm.

Consistent across the trials is the signal for higher rates of bleeding with upstream GP IIb/IIIa treatment. Thus it is reasonable to withhold GP IIb/IIIa receptor inhibitors until after diagnostic angiography. In patients undergoing PCI their use can be based on angiographic results (e.g., presence of thrombus and extent of disease), troponin elevation, previous treatment with a P2Y12 inhibitor, patient age, and other factors influencing the risk of serious bleeding [25, 26]. Upstream use of GP IIb/IIIa receptor inhibitors may be considered if there is active ongoing ischaemia among high-risk patients or where DAPT is not feasible. Patients who receive initial treatment with eptifibatide or tirofiban before angiography should be maintained on the same drug during and after PCI.

Comparative efficacy of GP IIb/IIIa receptor inhibitors

Abciximab was tested in the setting of PCI in a head-to-head comparison versus tirofiban in the TARGET trial, in which two-thirds of the patients had NSTE-ACS [27]. Abciximab was shown to be superior to tirofiban in standard doses in reducing the risk of death, MI, and urgent revascularisation at 30 days, but the difference was not significant at 6 months. Further trials explored higher doses of tirofiban in various clinical settings and the results of meta-analyses suggest that high-dose bolus tirofiban (25 μg/kg followed by infusion) has similar efficacy to abciximab [28]. There are no comparable data for eptifibatide.

Combination of GP IIb/IIIa receptor inhibitors with aspirin and a P2Y12 inhibitor

Limited data are available about the benefits of adding a GP IIb/IIIa receptor inhibitor to the combination of aspirin with a P2Y12 inhibitor in the setting of NSTE-ACS. In the Intracoronary Stenting and Antithrombotic Regimen: Rapid Early Action for Coronary Treatment-2 (ISAR-REACT-2) trial, 2, 022 high-risk NSTE-ACS patients were randomised following pretreatment with aspirin and 600 mg of clopidogrel to either abciximab or placebo during PCI. The 30-day composite endpoint of death, MI, or urgent target vessel revascularisation occurred significantly less frequently in abciximab-treated patients versus placebo (8.9% vs. 11.9%; RR 0.75; 95% CI: 0.58–0.97; p= 0.03). Most of the risk reduction with abciximab resulted from a reduction in death and non-fatal MI.

In the TRITON and PLATO trials the rates of use of GP IIb/IIIa receptor inhibitors were 55% and 27%, respectively. Patients receiving a GP IIb/IIIa receptor inhibitor in the TRITON trial had higher rates of TIMI major and minor non-CABG bleeding, but use of a GP IIb/IIIa receptor inhibitor did not influence the relative risk of bleeding with prasugrel compared to clopidogrel (p-value for interaction 0.19).

Prasugrel reduced rates of death, MI, or stroke compared to clopidogrel, both with (6.5% vs. 8.5%; HR 0.76; 95% CI: 0.64–0.90) and without (4.8% vs. 6.1%; HR 0.78; 95% CI: 0.63–0.97) GP IIb/IIIa receptor inhibitors. In the PLATO trial, ticagrelor also reduced rates of death, MI, or stroke in patients receiving (10.0% vs. 11.1%; HR 0.90; 95% CI: 0.76–1.07) or not receiving (9.7% vs. 11.9%; HR 0.82; 95% CI: 0.74–0.92) a GP IIb/IIIa receptor inhibitor [21].

Overall, it is reasonable to reserve combination therapy with a GP IIb/IIIa receptor inhibitor in addition to aspirin and a P2Y12 inhibitor for patients with NSTE-ACS undergoing PCI that are deemed to have a high risk of procedural MI and an absence of high risk for bleeding.

Glycoprotein IIb/IIIa inhibitors and adjunctive anticoagulant therapy

Most trials showing benefits of GP IIb/IIIa receptor inhibitors used an anticoagulant. Several trials in the field of NSTE-ACS, as well as observational studies in PCI, have shown that LMWH, predominantly enoxaparin, can be safely used with GP IIb/IIIa receptor inhibitors without compromising efficacy, although subcutaneous enoxaparin alone does not adequately protect against catheter thrombosis during primary PCI, despite this combination. In the Fifth Organization to Assess Strategies in Acute Ischemic Syndromes (OASIS-5) trial, GP IIb/IIIa receptor inhibitors were used with aspirin, clopidogrel, and either fondaparinux or enoxaparin [29]. Overall, bleeding complications were lower with fondaparinux than with enoxaparin. Bivalirudin and unfractionated heparin [UFH]/LMWH were shown to have equivalent safety and efficacy when used with aspirin, clopidogrel, and a GP IIb/IIIa receptor inhibitor in the ACUITY trial [30]. The combination of bivalirudin and a GP IIb/IIIa receptor inhibitor results in a similar rate of ischaemic events compared with bivalirudin alone, but is associated with a higher rate of major of bleeding events [31]. Thus, this combination cannot be recommended for routine use.

Glycoprotein IIb/IIIa receptor inhibitors and CABG

Patients undergoing CABG surgery whilst receiving GP IIb/IIIa receptor inhibitors require appropriate measures to ensure adequate haemostasis and discontinuation of GP IIb/IIIa receptor inhibitors before or, if not feasible, at the time of surgery. Eptifibatide and tirofiban have a short half-life (approximately 2 hours), so platelet function due to reversible receptor binding can recover by the end of CABG surgery. Abciximab has a short plasma half-life (10 min) but dissociates slowly from the platelet, with a half-life of approximately 4 hours, so that recovery of platelet aggregation responses to normal or near-normal takes approximately 48 hours after the infusion has been terminated (although receptor-bound abciximab can be detected for much longer).

FOCUS BOX 6The routine use of GP IIb/IIIa receptor inhibitors is not recommended, see Table 6

ANTICOAGULANTS

Anticoagulants are used in the treatment of NSTE-ACS to inhibit thrombin generation and/or activity, thereby reducing thrombus-related events. There is evidence that anticoagulation is effective in addition to platelet inhibition and that the combination of the two is more effective than either treatment alone. Several anticoagulants, which act at different levels of the coagulation cascade, have been investigated or are under investigation in NSTE-ACS. For a review of anticoagulants and their action on the coagulation cascade see ( Figure 3 ).

Indirect inhibitors of the coagulation cascade

Fondaparinux

The only selective factor-Xa inhibitor available for clinical use is fondaparinux. It inhibits coagulation factor Xa by binding reversibly and non-covalently to antithrombin, with a high affinity. Fondaparinux increases 300-fold the ability of antithrombin to inhibit factor Xa.

Fondaparinux has 100% bioavailability after subcutaneous injection, with an elimination half-life of 17 hours, and can therefore be given once daily. It is eliminated mainly by the kidneys, and is contraindicated if CrCl is <20 mL/min. No definite case of heparin-induced thrombocytopenia (HIT) has been reported with this drug. Therefore monitoring of platelet count is not necessary. No dose adjustment and no monitoring of anti-Xa activity are required.

In ACS, a 2.5 mg fixed daily dose of fondaparinux is recommended. This dose was selected on the basis of two large phase III trials (OASIS-5 and OASIS-6) [32, 33].

In the OASIS-5 study, 20, 078 patients with NSTE-ACS were randomised to receive 2.5 mg of subcutaneous fondaparinux once daily or subcutaneous enoxaparin 1 mg/kg twice daily for 5 days on average [32]. The primary efficacy outcome of death, MI, or refractory ischaemia at 9 days was 5.7% for enoxaparin versus 5.8% for fondaparinux (HR 1.01; 95% CI: 0.90–1.13), fulfilling the criteria for non-inferiority. At the same point, major bleedings were halved with fondaparinux: 2.2% compared to 4.1% with enoxaparin (HR 0.52; 95% CI: 0.44–0.61; p<0.001). Major bleeding was an independent predictor of long-term mortality, which was significantly reduced with fondaparinux at 30 days (2.9% vs. 3.5%; HR 0.83; 95% CI: 0.71–0.97; p= 0.02) and at 6 months (5.8% vs. 6.5%; HR 0.89; 95% CI: 0.80–1.00; p= 0.05). At 6 months the composite endpoint of death, MI, or stroke was significantly lower with fondaparinux versus enoxaparin (11.3% vs. 12.5%; HR 0.89; 95% CI: 0.82–0.97;p = 0.007). In the population submitted to PCI, a significantly lower rate of major bleeding complications (including access site complications) was observed at 9 days in the fondaparinux group versus enoxaparin (2.4% vs. 5.1%; HR 0.46; 95% CI: 0.35–0.61; p<0.001). Catheter thrombus was observed more frequently with fondaparinux (0.9%) than with enoxaparin (0.4%), but was abolished by injection of an empirically determined bolus of UFH at the time of PCI. As the rate of ischaemic events was similar in both the fondaparinux and heparin groups at 9 days, the net clinical benefit of death, MI, stroke, and major bleeding favoured fondaparinux versus enoxaparin (8.2% vs. 10.4%; HR 0.78; 95% CI: 0.67–0.93; p= 0.004).

Results from a large-scale Scandinavian registry exploring the uptake of fondaparinux compared with LMWH among 40 616 NSTEMI patients described a reduction in in-hospital mortality [OR 0.75 (95% CI 0.63, 0.89)] and bleeding events [OR 0.54 (95% CI 0.42, 0.70)] associated with the use of fondaparinux, but the advantage disappeared at 30 days and 6 months, respectively [83]. In summary, fondaparinux is considered to be the parenteral anticoagulant with the most favourable therapeutic window and is recommended regardless of the management strategy unless the patient is scheduled for immediate coronary angiography.

FOCUS BOX 7Anticoagulation is recommended in all patients with NSTE-ACS. Fondaparinux is the anticoagulant of first choice, see Table 7

Low-molecular weight heparins

Low-molecular weight heparins are a class of heparin-derived anti-Xa and anti-IIa compounds with molecular weights ranging from 2, 000 to 10, 000 Daltons. LMWHs have different pharmacokinetic properties and anticoagulant activities and are not therefore clinically interchangeable. LMWHs have several advantages over UFH, particularly an almost complete absorption after subcutaneous administration, less protein binding, less platelet activation and, thereby, a more predictable dose-effect relationship. Furthermore, there is a lower risk of HIT with LMWHs compared to UFH. LMWHs are eliminated at least partially by the renal route. The risk of accumulation increases with declining renal function, resulting in an increased bleeding risk. Most LMWHs are contraindicated in the case of renal failure with CrCl <30 mL/min. However, for enoxaparin, dose adaptation is advocated in patients with a CrCl <30 mL/min (1 mg/kg once instead of twice daily).

With the current doses used in clinical practice, monitoring of anti-Xa activity is not necessary, except in special populations of patients such as those with renal failure or obesity.

Several meta-analyses have been published concerning the relative efficacy of LMWHs versus UFH in NSTE-ACS. The first, which included 12 trials with different drugs totalling 17, 157 patients, confirmed that heparins in aspirin-treated NSTE-ACS patients conferred a significant benefit over placebo in terms of death or MI (OR 0.53; 95% CI: 0.38–0.73; p=0.0001). There was no significant advantage in favour of LMWHs compared to UFH with regard to efficacy or safety endpoints [34]. A meta-analysis of all trials testing enoxaparin versus UFH, totalling 21, 946 patients, showed no significant difference between the two compounds for death at 30 days (3.0% vs. 3.0%; OR 1.00; 95% CI: 0.85–1.17; p=not significant). A significant reduction in the combined endpoint of death or MI at 30 days was observed in favour of enoxaparin versus UFH (10.1% vs. 11.0%; OR 0.91; 95% CI: 0.83–0.99).

The respective efficacy and safety of LMWHs compared with UFH when prescribed in association with GP IIb/IIIa receptor inhibitors was explored in a number of small-scale trials. Overall there was no significant difference in safety endpoints. These trials failed to show a difference in efficacy in terms of “hard” endpoints, except in the Integrilin and Enoxaparin Randomized Assessment of Acute Coronary Syndrome Treatment (INTERACT) trial, where a significant difference in favour of enoxaparin plus eptifibatide was observed over UFH plus eptifibatide [35]. However, none of these trials had sufficient statistical power to draw definitive conclusions.

Most of these trials were carried out at a time when an invasive strategy was not routine practice, and in some an invasive strategy was not encouraged. As a result only a minority of patients in these trials underwent invasive treatment, and any conclusions that may be drawn from these studies are now likely to be considered outdated.

The only trial to test enoxaparin versus UFH using a contemporary approach, with a high rate of PCI, revascularisation, stent implantation, and active antiplatelet therapy with aspirin, clopidogrel, and GP IIb/IIIa receptor inhibitors, was the Superior Yield of the New Strategy of Enoxaparin, Revascularization and Glycoprotein IIb/IIIa Inhibitors (SYNERGY) trial [36]. This trial included 10, 027 high-risk patients undergoing early invasive evaluation plus revascularisation, of which 76% received anticoagulants prior to randomisation. No significant difference was observed in terms of death and MI at 30 days (enoxaparin vs. UFH, 14.0% vs. 14.5%; OR 0.96; 95% CI: 0.86–1.06; p=not significant). More bleeding events occurred with enoxaparin, with a statistically significant increase in TIMI major bleeding (9.1% vs. 7.6%; p=0.008).

In NSTE-ACS patients pre-treated with enoxaparin, no additional enoxaparin is recommended during PCI if the last subcutaneous enoxaparin injection was administered <8 hours before PCI, whereas an additional 0.3 mg/kg IV bolus is recommended if the last subcutaneous enoxaparin injection was administered >8 hours before PCI. Crossing over to another anticoagulant during PCI is strongly discouraged.

Unfractionated heparin
Unfractionated heparin is a heterogeneous mixture of polysaccharide molecules, with a molecular weight ranging from 2, 000 to 30, 000 (mostly 15–18, 000) Daltons. UFH is poorly absorbed by the subcutaneous route, so IV infusion is the preferred route of administration. The therapeutic window is narrow, requiring frequent monitoring of aPTT, with an optimal target level of 50–75 s, corresponding to 1.5–2.5 times the upper limit of normal. At higher aPTT values, the risk of bleeding complications is increased, without further antithrombotic benefits. A weight-adjusted dose of UFH is recommended, at an initial bolus of 60–70 IU/kg with a maximum of 5000 IU, followed by an initial infusion of 12–15 IU/kg/h, to a maximum of 1, 000 IU/h. The anticoagulant effect of UFH is lost rapidly within a few hours after interruption.

A pooled analysis of six trials testing short-term UFH versus placebo or untreated controls showed a 33% risk reduction in death and MI (OR 0.67; 95% CI: 0.45–0.99; p=0.04) [34]. The risk reduction for MI accounted for practically all of the beneficial effect. In trials comparing the combination of UFH plus aspirin versus aspirin alone in NSTE-ACS, a trend towards a benefit was observed in favour of the UFH–aspirin combination, but at the cost of an increased risk of bleeding. Recurrence of events after interruption of UFH explains why this benefit is not maintained over time, unless the patient is revascularised before the interruption of UFH.

In the PCI setting, UFH is given as an IV bolus either under ACT guidance (ACT in the range of 250–350 s, or 200–250 s if a GP IIb/IIIa receptor inhibitor is given) or in a weight-adjusted manner (usually 70–100 IU/kg or 50–60 IU/kg in combination with GP IIb/IIIa receptor inhibitors). Continued heparinisation after completion of the procedure, either preceding or following arterial sheath removal, is not recommended.

If the patient is taken to the catheterisation laboratory with an ongoing IV infusion of heparin, a further IV bolus of UFH should be adapted according to the ACT values and use of GP IIb/IIIa receptor inhibitors.

Direct thrombin inhibitors (bivalirudin)
Several DTIs have been tested over time, but only bivalirudin reached clinical use in PCI and ACS settings. Bivalirudin binds directly to thrombin (factor IIa) and thereby inhibits the thrombin-induced conversion of fibrinogen to fibrin. It inactivates fibrin-bound as well as fluid-phase thrombin. As it does not bind to plasma proteins, the anticoagulant effect is more predictable. Bivalirudin is eliminated via the kidneys. Coagulation tests (aPTT, ACT) correlate well with plasma concentrations.

Bivalirudin was initially tested in the setting of PCI. In the REPLACE-2 trial, bivalirudin plus provisional GP IIb/IIIa receptor inhibitors was shown to be non-inferior to UFH plus GP IIb/IIIa receptor inhibitors regarding protection against ischaemic events during PCI procedures, but with a significantly lower rate of major bleeding complications (2.4% vs. 4.1%, p<0.001) for bivalirudin. No significant difference was observed in the hard endpoints at 1 month, 6 months and 1 year. Bivalirudin is currently approved for urgent and elective PCI at a dose of 0.75 mg/kg bolus followed by 1.75 mg/kg/h. In NSTE-ACS patients, bivalirudin is recommended at a dose of 0.1 mg/kg IV bolus followed by an infusion of 0.25 mg/kg/h until PCI.

The ACUITY trial tested bivalirudin in the setting of NSTE-ACS and planned invasive strategy [37]. Patients were randomised to one of three unblinded treatment groups: standard combination treatment with either UFH or LMWH with a GP IIb/IIIa receptor inhibitor (control arm) (n=4, 603); bivalirudin with a GP IIb/IIIa receptor inhibitor (n=4, 604); or bivalirudin alone (n=4, 612). Bivalirudin was started before angiography and was stopped after PCI. There was no significant difference between standard UFH/LMWHs plus GP IIb/IIIa receptor inhibitors, and the combination of bivalirudin and GP IIb/IIIa receptor inhibitors, for the composite ischaemia endpoint at 30 days (7.3% vs. 7.7%, respectively; RR 1.07; 95% CI: 0.92–1.23; p=0.39) or for major bleeding (5.7% vs. 5.3%; RR 0.93; 95% CI: 0.78–1.10; p=0.38). Bivalirudin alone was non-inferior to the standard UFH/LMWHs combined with GP IIb/IIIa receptor inhibitors with respect to the composite ischaemia endpoint (7.8% vs. 7.3%; RR 1.08; 95% CI: 0.93–1.24; p=0.32), but with a significantly lower rate of major bleeding (3.0% vs. 5.7%; RR 0.53; 95% CI: 0.43–0.65; p<0.001). Therefore the 30-day net clinical outcome was significantly better (10.1% vs. 11.7%; RR 0.86; 95% CI: 0.77–0.94; p=0.02) with bivalirudin alone versus UFH/LMWHs plus GP IIb/IIIa receptor inhibitors [37].

Recently, the MATRIX trial randomized 7213 patients with ACS for whom PCI was anticipated to either UFH or bivalirudin [95]. The MACCE rate was not significantly lower with bivalirudin than with UFH (10.3% vs, 10.9%; p=0.44). In addition, the rates of net adverse events including bleeding events were comparable after bivalirudin and UFH (11.2% vs. 12.45; p=0.12). Even post-PCI infusion of bivalrudin, as compared with no infusion, did not significantly reduce net clinical adverse events or acute stent thrombosis (11.0% vs. 11.9%; p=0.34).

New anticoagulants

Two newer anticoagulants in addition to standard antiplatelet therapy were recently investigated in the setting of ACS in patients without indication for oral anticoagulation. The direct factor Xa-inhibitors apixaban and rivaroxaban have been tested in phase II and III-studies. APPRAISE-2 (apixaban) was stopped prematurely due to excessive bleeding with the apixaban regimen. [38] The ATLAS-ACS2-TIMI51 trial (rivaroxaban) has shown a significant 16% reduction in the primary efficacy endpoint, which was a composite of cardiovascular death, myocardial infarction and stroke. [39] Despite the fact that all-cause mortality could be reduced by 36% it has to be considered, that patients were treated with aspirin and clopidogrel and not with the more contemporary combination of aspirin and prasugrel or ticagrelor. Therefore, the findings are currently difficult to translate into the clinical routine.

Combination of anticoagulation and antiplatelet treatment

Anticoagulation and DAPT with aspirin and a P2Y12 inhibitor are recommended as first-line treatment during the initial phase of NSTE-ACS. The duration of anticoagulation is limited to the acute phase, whereas DAPT is recommended for 12 months with or without PCI and stent implantation. A sizeable proportion of patients (6%–8%) presenting with NSTE-ACS have an indication for long-term oral anticoagulation with a vitamin-K antagonist (VKA) due to various conditions such as moderate-to-high-embolic-risk atrial fibrillation, mechanical heart valves, or venous thromboembolism. Coronary angiography should be performed with oral anticoagulation (OAC), because interruption of OAC and bridging with parenteral anticoagulants may lead to an increase in both thromboembolic episodes and bleeds [84].

The choice of stent type – newer-generation drug-eluting stent (DES) vs. bare-metal stent (BMS) – in patients requiring long-term anticoagulation is a matter of controversy in the setting of NSTE-ACS. Due to the absence of conclusive data, the decision should be based on individual aspects including estimated probability of subsequent target vessel revascularization (TVR) due to restenosis. In the ZEUS trial, 1606 patients with either high bleeding risk (52%), high thrombosis risk (17%), or low restenosis risk (31%) were randomized to implantation with either the zotarolimus-eluting DES (n=802) or a BMS (n=804) [85]. At 1 year, major adverse cardiovascular events were lower for patients implanted with a zotarolimus-eluting stent than for those with a BMS [17.5% vs. 22.1%; HR 0.76 (95% CI 0.61, 0.95), P=0.011], results that were due to reductions in TVR [5.9% vs. 10.7%; HR 0.53 (95% CI 0.37, 0.75), P<0.001], MI [2.9% vs. 8.1%; HR 0.35 (95% CI 0.22, 0.56), P=0.001] and definite/probable stent thrombosis [2.0% vs. 4.1%; HR 0.48 (95% CI 0.27, 0.88), P=0.019]. The benefit of the zotarolimus-eluting stent over the BMS remained consistent across all pre-specified subgroups, and, in particular, no significant differences in any bleeding events between treatment groups were identified. This study suggests that a newer-generation DES may be preferred in patients who cannot tolerate long-term exposure to DAPT, such as those needing chronic OAC.

Even when a dual antiplatelet therapy (DAPT) with aspirin and a P2Y12 inhibitor is commonly used to reduce recurrent cardiovascular events in patients with ACS, irrespective of whether they are managed medically or with PCI, and oral anticoagulation is the standard of care to reduce the risk of stroke and systemic embolism in patients with AF. The combination of DAPT with anticoagulation is associated with a high risk of bleeding. Double antithrombotic therapy has been proposed as alternative to triple therapy and was shown to be superior in terms of bleeding in the open label WOEST trial comparing clopidogrel versus clopidogrel and aspirin among patients requiring oral anticoagulation with Vitamin K antagonists (VKA) [100]. Furthermore a recent metaanalysis including 4 large randomized trials (n = 10 026; WOEST, PIONEER AF-PCI, RE-DUAL PCI, and AUGUSTUS) could support the use of NOAC plus P2Y12 inhibitor as the preferred regimen post–percutaneous coronary intervention for these high-risk patients with AF [101, 102, 103, 104]. The overall prevalence of ACS varied from 28% to 61%. A regimen of NOACs plus P2Y12 inhibitor was associated with less bleeding compared with VKAs plus DAPT. Strategies omitting aspirin caused less bleeding, including intracranial bleeding, without significant difference in MACE, compared with strategies including aspirin. Compared with a regimen of vitamin K antagonist (VKA) plus dual antiplatelet therapy (DAPT; P2Y 12 inhibitor plus aspirin), the odds ratios (ORs) for TIMI major bleeding were 0.58 (95% CI, 0.31-1.08) for VKA plus P2Y 12 inhibitor, 0.49 (95% CI, 0.30-0.82) for non-VKA oral anticoagulant (NOAC) plus P2Y 12 inhibitor, and 0.70 (95% CI, 0.38-1.23) for NOAC plus DAPT. Compared with VKA plus DAPT, the ORs for MACE were 0.96 (95% CI, 0.60-1.46) for VKA plus P2Y 12 inhibitor, 1.02 (95% CI, 0.71-1.47) for NOAC plus P2Y 12 inhibitor, and 0.94 (95% CI, 0.60-1.45) for NOAC plus DAPT.

If patients under dual or triple therapy need re-angiography, radial access should be the preferred choice in order to reduce risk of periprocedural bleeding. PCI without interruption of VKAs, to avoid bridging therapy that may lead to more bleeding or ischaemic complications, has also been advocated.

CORONARY REVASCULARISATION

Revascularisation for NSTE-ACS relieves symptoms, shortens hospital stay, and improves prognosis. The indications and timing for myocardial revascularisation and choice of preferred approach (PCI or CABG) depend on many factors including the patient’s condition, the presence of risk features, co-morbidities, and extent and severity of the lesions as identified by coronary angiography.

Risk stratification should be performed as early as possible to rapidly identify high-risk individuals and reduce delay to an early invasive approach. However, patients with NSTE-ACS represent a heterogeneous population in terms of risk and prognosis. This extends from low-risk patients who benefit from conservative treatment and a selective invasive approach to patients at high risk of death and cardiovascular events, who should be rapidly referred for angiography and revascularisation. Therefore, risk stratification is critical for selection of the optimal management strategy. Analysis of patient risk profile may be performed by assessment of generally accepted high-risk criteria and/or applying predefined risk scores such as the GRACE risk score.

Invasive versus conservative approach
Many randomised controlled trials (RCTs) and meta-analyses have assessed the effects of a routine invasive versus conservative or selective invasive approach in the short and long term. The benefit of revascularisation is difficult to compare and tends to be underestimated in these trials due to different proportions of patients crossing over from the conservative arm to revascularisation (crossover rates vary from 28% to as high as 58%). In general, the benefit is more pronounced when the difference in revascularization rates between invasive versus conservative arms is high. Furthermore, the selection of patients may have been biased, as some studies included all consecutive patients while others excluded severely unstable patients.

A meta-analysis of seven RCTs comparing routine angiography followed by revascularisation with a selective invasive strategy showed reduced rates of combined death and MI, with a non-significant trend towards fewer deaths and a significant reduction in MI alone, with a routine invasive strategy [40]. There was, however, an early hazard in terms of a significantly higher risk of death and of death and MI during initial hospitalisation for the routine invasive management. However, four of the seven trials included in this meta-analysis were not contemporary due to marginal use of stents and GP IIb/IIIa receptor inhibitors. Another meta-analysis including seven trials with more contemporary adjunctive medication showed a significant risk reduction for all-cause mortality and non-fatal MI for an early invasive versus conservative approach at 2 years without excess of death and non-fatal MI at 1 month [41]. A more recent meta-analysis of eight RCTs showed a significant reduction in death, MI, or rehospitalisation with ACS for the invasive strategy at 1 year [42]. However, this benefit was driven mainly by improved outcomes in biomarker-positive (high-risk) patients. In a sex-specific analysis, a comparable benefit was found in biomarker-positive women compared with biomarker-positive men. Importantly, biomarker-negative women tended to have a higher event rate with an early invasive strategy, suggesting that early invasive procedures should be avoided in low-risk, troponin-negative, female patients. A recent meta-analysis, based on individual patient data from the Fragmin and Fast Revascularization during Instability in Coronary Artery Disease-II (FRISC II), Invasive versus Conservative Treatment in Unstable Coronary Syndromes (ICTUS), and Randomized Intervention Trial of unstable Angina-3 (RITA-3) studies comparing a routine invasive versus selective invasive strategy, revealed a reduction in rates of death and non-fatal MI at 5-year follow-up, with the most pronounced difference in high-risk patients [43]. Age, diabetes, previous MI, ST-segment depression, hypertension, body mass index (<25 kg/m2 or >35 kg/m2), and treatment strategy were found to be independent predictors of death and non-fatal MI during follow-up [43]. There was a 2.0–3.8% absolute reduction in cardiovascular death or MI in the low- and intermediate-risk groups, and an 11.1% absolute risk reduction in the highest-risk patients. These results support a routine invasive strategy, but highlight the role of risk stratification in the management decision process.

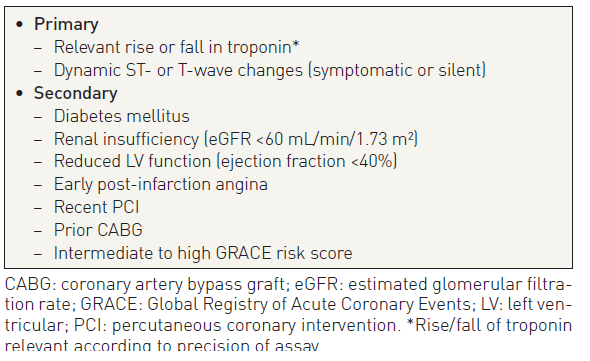

The subgroups of patients at high risk that benefit from an early invasive management (diabetic patients, the elderly and patients with renal insufficiency) are discussed in the respective sections.

Timing of angiography and intervention

The optimal timing of angiography and revascularisation in NSTE-ACS has been studied extensively. However, patients at very high risk, i.e., those with refractory angina, severe heart failure, life-threatening ventricular arrhythmias, or haemodynamic instability, were generally not included in RCTs, in order not to withhold potentially life-saving treatment. Such patients may have evolving MI and should be taken to an immediate (<2 h) invasive evaluation, regardless of ECG or biomarker findings.

Previously, there was a debate about whether early angiography followed by revascularisation is associated with an early hazard. A very early invasive strategy (0.5–14 hours), as opposed to a delayed invasive strategy (21–86 hours), was tested in five prospective RCTs, of which only Timing of Intervention in Patients with Acute Coronary Syndromes (TIMACS) had an adequate size (for overview see the ESC revascularization guidelines. [44] In a meta-analysis of four trials – Angioplasty to Blunt the Rise of Troponin in Acute Coronary Syndromes Randomized for an Immediate or Delayed Intervention (ABOARD), Early or Late Intervention in unStable Angina (ELISA), Intracoronary Stenting With Antithrombotic Regimen Cooling Off (ISAR-COOL), and TIMACS – early catheterisation followed by coronary intervention on the first day of hospitalisation was shown to be safe and superior in terms of lower risk of recurrent ischaemia (–41%) and shorter hospital stay (-28%) [45]. With respect to hard endpoints, only the small OPTIMA trial found an increased rate of procedure-related MI in patients having immediate (30 min) compared with a deferred (25 hours) strategy [46]. In contrast, the ABOARD trial did not confirm a difference in MI as defined by troponin release when an immediate intervention (1.2 h) was compared with a strategy of intervention deferred to the next working day (mean 21 h) [47].

Owing to heterogeneous risk profiles, the optimal timing for an invasive approach may vary in different risk cohorts. There is growing evidence to suggest a benefit of an invasive strategy within 24 hours in patients with a high-risk profile. The TIMACS trial revealed a significant 38% reduction in death, MI, or stroke at 6 months in high-risk patients (GRACE score >140), with an early (≤24 hours) compared to a delayed (≥36 hours) strategy. No significant difference was observed in patients with a low- to intermediate-risk profile (GRACE score ≤140) [48]. Importantly, there were no safety issues regarding an early invasive strategy in this trial. In the ACUITY data analysis, delay to PCI >24 hours was an independent predictor of 30-day and 1-year mortality. This increased ischaemic event rate was most evident among moderate- and high-risk patients (according to the TIMI risk score).

Optimal adjunctive pharmacotherapy is important in an invasive strategy, but pretreatment should not delay angiography and the intervention. An intentional delayed invasive approach for stabilisation including GP IIb/IIIa receptor inhibitors (“cooling-off” strategy) is of no benefit [24].

In summary, timing of angiography and revascularisation should be based on patient risk profile. Patients at very high risk (as defined above) should be considered for urgent coronary angiography (<2 hours). In patients at high risk with a GRACE risk score of >140 or with at least one major high-risk criterion, an early invasive strategy with catheterization within 24 hours appears to be the most reasonable time window. This implies expedited transfer for patients admitted to hospitals without onsite catheterisation facilities. In lower-risk subsets with a GRACE risk score of <140 but with at least one high-risk criterion ( Table 8 and 9), the invasive evaluation can be delayed without increased risk but should be performed during the same hospital stay, preferably within 72 hours of admission. In such patients immediate transfer is not mandatory, but should be organised within 72 hours. In other low-risk patients without recurrent symptoms a non-invasive assessment of inducible ischaemia should be performed before hospital discharge. Coronary angiography should be performed if the results are positive for reversible ischaemia.

FOCUS BOX 8The timing of angiography is based upon risk stratification

Percutaneous coronary intervention versus coronary artery bypass surgery

There are no specific RCTs comparing PCI with CABG in patients with NSTE-ACS. In all trials comparing an early with a late strategy, or an invasive with a medical management strategy, the decision regarding whether to perform CABG or PCI was left to the discretion of the investigator.

In patients stabilised after an episode of ACS, the choice of revascularisation modality can be made as in stable CAD [44].

In approximately one-third of patients angiography will reveal single-vessel disease, allowing ad hoc PCI in most cases. Multivessel disease will be present in another 50% [7]. Here the decision is more complex and the choice has to be made between culprit lesion PCI, multivessel PCI, CABG, or a combined (hybrid) revascularisation in some cases. The revascularisation strategy should be based on the clinical status as well as the severity and distribution of the CAD and the lesion characteristics.

Culprit lesion PCI usually is the first choice in most patients with multivessel disease. The strategy of multivessel stenting for suitable significant stenoses rather than stenting the culprit lesion only has not been evaluated appropriately in a randomised fashion. However, in a large database including 105, 866 multivessel CAD patients with NSTE-ACS, multivessel PCI was compared with single-vessel PCI [49]. Multivessel PCI was associated with lower procedural success but similar in-hospital mortality and morbidity, although no long-term results were reported.

CABG was compared with PCI in a propensity-matched analysis among patients with multivessel disease from the ACUITY trial [50]. PCI-treated patients had lower rates of stroke, MI, bleeding, and renal injury, similar 1-month and 1-year mortality, but significantly higher rates of unplanned revascularisation at both 1 month and 1 year. However, only 43% of CABG patients could be matched and there was a strong trend for a greater major adverse cardiac event rate at 1 year with PCI compared with CABG (25.0% vs. 19.5%; p= 0.05). These results are consistent with those of the SYNergy between percutaneous coronary intervention with TAXus and cardiac surgery (SYNTAX) trial, which included 28.5% of patients with a recent ACS, in both PCI and CABG arms [51]. As up to one third of patients with multi-vessel CAD who were included in these trials presented with unstable angina or NSTE-ACS, it is reasonable to use criteria applied in patients with stable CAD to guide the choice of revascularization modality among patients stabilised with NSTE-ACS [88].

Culprit lesion PCI does not necessarily require a case-by-case review by the “Heart Team” (a multidisciplinary decision-making team), when on clinical or angiographic grounds the procedure needs to be performed ad hoc after angiography [44]. However, protocols based on the SYNTAX score should be designed by the Heart Team at each institution, defining specific anatomical criteria and clinical subsets that can be treated ad hoc or transferred directly to CABG. After culprit lesion PCI, patients with scores in the two higher terciles of the SYNTAX score should be discussed within the Heart Team, in light of functional evaluation of the remaining lesions. This also includes the assessment of co-morbidities and individual characteristics.

Coronary artery bypass surgery

The proportion of patients with NSTE-ACS undergoing bypass surgery during initial hospitalisation is approximately 10%. While the benefit from PCI in patients with NSTE-ACS is related to its early performance, the benefit from CABG is greatest when patients can be operated on after several days of medical stabilisation depending on individual risk. As there is no randomised study comparing an early with a delayed CABG strategy, the general consensus is to wait for 48–72 hours in patients who had culprit lesion PCI and have additional severe CAD. In a large database analysis of unselected patients admitted for ACS, performance of early CABG, even in higher-risk patients, was associated with very low in-hospital mortality [52]. In the CRUSADE and ACTION registry–Get With The Guidelines programmes in patients with NSTEMI, unadjusted and adjusted analyses showed no difference in outcomes between patients undergoing early (≤48 hour) or in-hospital late (>48 hour) surgery, although CABG was delayed more often in higher-risk patients, suggesting that timing might be appropriately determined by multidisciplinary clinical judgement [53]. Therefore in patients selected for CABG, its timing should be individualised according to symptoms, haemodynamic status, coronary anatomy, and inducible ischaemia or flow reserve measurements. When there is ongoing or recurrent ischaemia, ventricular arrhythmias, or haemodynamic instability, CABG should be performed immediately. Surgery should be performed during the same hospital stay in patients with left-main or three-vessel disease involving the proximal left anterior descending artery. In this decision process it is important to consider the risk of bleeding complications in patients who undergo bypass surgery, when initially treated with aggressive antiplatelet treatment. However, pretreatment with a triple or dual antiplatelet regimen should be considered only as a relative contraindication to early bypass surgery, but does require specific surgical measures to minimise bleeding. In patients requiring emergent surgery before the washout period of thienopyridines, off-pump CABG or minimised cardiopulmonary bypass circuits, blood salvaging techniques, and platelet transfusion should be used to minimise risk of bleeding and its consequences.

Percutaneous coronary intervention technique

Outcome after PCI in NSTE-ACS has been improved markedly with the use of intracoronary stenting and contemporary antithrombotic and antiplatelet therapies. As for all patients undergoing PCI, stent implantation in this setting helps to reduce the threat of abrupt closure and restenosis. In line with comparable safety and superior efficacy, new-generation DES are recommended over BMS for patients with NSTE-ACS [87]. In addition, HORIZONS AMI, a randomised study of DES versus BMS in STEMI patients, did not reveal any safety concerns, whereas a consistent reduction in the incidence of restenosis and unplanned repeat revascularisation was found after DES implantation [54]. As mentioned above, DAPT is recommended for 12 months independent of stent type. In patients with a compelling indication for long-term anticoagulation, triple therapy with aspirin, clopidogrel, and OAC should be given for 4 weeks and followed by 12 months of dual therapy with clopidogrel and OAC/NOAC. Dual therapy may be considered as an alternative to triple therapy in patients with high bleeding risk. The use of aspiration thrombectomy in the NSTEMI setting is possible; however, its benefit was not assessed prospectively in randomised trials in patients with NSTE-ACS [89]. It remains undetermined whether other coronary segments with insignificant stenosis but vulnerable features merit mechanical intervention; such intervention is therefore not supported by evidence.

SPECIAL POPULATIONS AND CONDITIONS

The elderly
The clinical presentation of NSTE-ACS in the elderly is often atypical and they are more likely to have mild symptoms. Among elderly patients with atypical presentation of NSTE-ACS, dyspnoea is the leading symptom while syncope, malaise, and confusion are less frequent. The results of an ECG are less likely to demonstrate marked ST-segment deviation. Elderly patients present more frequently with NSTE-ACS than STEMI.

Age is one of the most important predictors of risk in NSTE-ACS [11]. Patients aged >75 years have at least double the mortality rate of those <75 years. The prevalence of ACS-related complications such as heart failure, bleeding, stroke, renal failure, and infections markedly increases with age.

The risk of major bleeding associated with unfractionated heparin, enoxaparin, GP IIb/IIIa receptor inhibitors, and P2Y12 inhibitors is significantly increased in older patients. In the SYNERGY trial, no difference in the rates of 30-day death or MI, 30-day death, and 1-year death between UFH and enoxaparin groups was observed among patients >75 years of age. However, the rates of TIMI major bleeding and GUSTO severe bleeding were significantly higher in the enoxaparin group. As a consequence, enoxaparin should be used with caution in the elderly and the dose should be adapted to renal function. Over 75 years of age, the dose should be reduced to 1 mg/kg once daily and anti-Xa activity monitored [55]. A significantly lower risk of bleeding was observed with fondaparinux compared with enoxaparin in patients >65 years of age in the OASIS-5 trial [32].

Elderly patients are substantially less likely to undergo an invasive strategy after NSTE-ACS. However, reports from individual trials suggested that the benefit from the invasive strategy was mainly observed in patients >65 years of age. In a subgroup analysis of the Treat angina with Aggrastat and determine Cost of Therapy with an Invasive or Conservative Strategy (TACTICS)-TIMI 18 trial, patients >75 years of age with NSTE-ACS derived the largest benefit, both in terms of relative and absolute risk reductions, from an invasive strategy at the cost of an increase in risk of major bleeding and need for transfusions. This was confirmed by a detailed meta-analysis [43].

Decisions on how to manage individual elderly patients should be based on ischaemic and bleeding risk, estimated life expectancy, co-morbidities, quality of life, patient wishes and the estimated risks and benefits of revascularisation.

Gender

Women presenting with NSTE-ACS are older than men and have a higher frequency of diabetes, hypertension, heart failure, and other co-morbidities. Atypical presentations, including dyspnoea or symptoms of heart failure, are more common. Although no sex-specific treatment effect has been described for most therapeutic agents, women with NSTE-ACS are less likely than men to receive evidence-based therapies including invasive diagnostic procedures and coronary revascularisation.

Contradictory results have been published with respect to the influence of sex on the treatment effect of an invasive strategy in NSTE-ACS. While observational studies suggested better long-term outcomes in unselected women undergoing an early invasive strategy, a meta-analysis showed that the benefit of invasive strategies was restricted to male patients, with no benefit in women up to 1 year of follow-up [56].

The meta-analysis by the Cochrane collaboration pointed out that women derive a significant long-term benefit in terms of death or MI (RR 0.73; 95% CI 0.59–0.91) for an invasive versus conservative strategy, although with an early hazard [57]( View chapter ).

Diabetes mellitus

Diabetes mellitus is an independent predictor of mortality among patients with NSTE-ACS. Registries have consistently shown that revascularisation (any form), thienopyridines, and GP IIb/IIIa receptor inhibitors were prescribed less frequently among diabetic patients than among non-diabetic patients, with a clear impact on in-hospital and long-term mortality (5.9% vs. 3.2% at 1 month, and 15.2% vs. 7.6% at 1 year). In addition, diabetic patients are less likely to receive reperfusion therapies or undergo revascularisation compared with non-diabetic patients.

Revascularisation in diabetic patients causes specific problems. CAD is typically diffuse and extensive, and restenosis as well as occlusion rates after PCI and CABG are higher. Repeat revascularisation procedures are more frequent after PCI, compared with CABG. An early invasive approach has been shown to be beneficial in this high-risk subgroup, with greater benefit in diabetic than in non-diabetic patients [58].

In unselected diabetic patients with multivessel disease, CABG appears to offer a better outcome compared with PCI. In a meta-analysis of individual data from 7,812 patients in 10 randomised trials, CABG was associated with significantly lower mortality at 5.9-year follow-up than with PCI in diabetic patients [59]. Overall there was no difference in mortality with CABG versus PCI (15% vs. 16%; HR 0.91; 95% CI: 0.82–1.02; p= 0.12), but mortality was significantly lower for CABG among 1, 233 patients with diabetes (23% vs. 29%; HR 0.70; 95% 0.56–0.87; p= 0.05; numbers needed to treat [NNT] = 17). In the Bypass Angioplasty Revascularization Investigation 2 Diabetes (BARI-2D) trial, diabetic patients with stable angina were randomised to either intensive medical therapy or intensive medical therapy plus revascularisation with either CABG or PCI (physician’s choice). At 5-year follow-up, in 763 patients in the CABG group, the rates of all-cause mortality or MI were significantly lower in the CABG group versus intensive medical therapy alone (21.1% vs. 29.2%; p <0.010), as well as the rate of cardiac death or MI (15.8% vs. 21.9%; p <0.03) and MI (10% vs. 17.6%; p <0.003). There was no significant difference in outcome between intensive medical therapy alone and intensive medical therapy plus PCI [60, 61]. In SYNTAX – a trial comparing CABG to PCI with DES in main stem and multivessel disease – the difference in major adverse cardiac and cerebral events at 1-year follow-up between CABG and PCI groups was doubled in the predefined diabetes-cohort, mostly driven by repeat revascularisation. However, there was no significant difference in rates of death or MI. Finally, in the New York Registry, a trend to improved outcomes in diabetic patients treated with CABG compared with DES (OR for death or MI at 18 months 0.84; 95% CI: 0.69–1.01) was reported [62].

All of these studies suggest that CABG offers a better outcome compared with PCI in diabetic patients. However, it has to be pointed out that these trials incorporated mostly – if not only – chronic stable patients, and it is unclear whether these data can be extrapolated to patients with NSTE-ACS.

With respect to the choice of stent, in a meta-analysis DES proved to be at least as safe as BMS provided that DAPT is continued for >6 months, which is indicated in ACS anyway [63]. Repeat target vessel revascularisation was considerably less frequent with DES than BMS (OR 0.29 for sirolimus-eluting; 0.38 for paclitaxel-eluting). It may be assumed that this is similar in diabetic patients with ACS. Regarding the choice of conduits, observational studies suggest that arterial grafts offer better outcome compared with saphenous vein grafts. The impact of revascularisation with bilateral arterial grafting on long-term outcome and risk of mediastinal infections is still debated. Again, no data confined to ACS patients alone are available.

There is no indication that the antithrombotic regimen should differ between diabetic and non-diabetic patients. However, in the TRITON-TIMI 38 trial, prasugrel was shown to be superior to clopidogrel in reducing the composite endpoint of cardiovascular death or MI or stroke without excess of major bleeding. Similarly, ticagrelor, when compared with clopidogrel in the PLATO trial, reduced the rate of ischaemic events in ACS patients irrespective of diabetic status and glycaemic control, without an increase in major bleeding events. Ticagrelor reduced all-cause mortality in patients with haemoglobin A1c above the median (>6%). Although GP IIb/IIIa receptor inhibitors were shown in an earlier meta-analysis (without concomitant use of thienopyridines) to have a favourable impact on outcome in diabetic patients, routine upstream treatment was not confirmed to be beneficial in the more recent EARLY-ACS trial [24]. Therefore, with the current use of high-dose oral antiplatelet agents, diabetic patients do not seem to benefit from the routine addition of GP IIb/IIIa receptor inhibitors.

Prevention of contrast-induced nephropathy is particularly important in diabetic patients undergoing angiography and/or PCI. There are no data to support delay of angiography in patients treated with metformin as the risk of lactate acidosis is negligible. Renal function should be monitored closely following contrast exposure ( View chapter ).

Chronic kidney disease

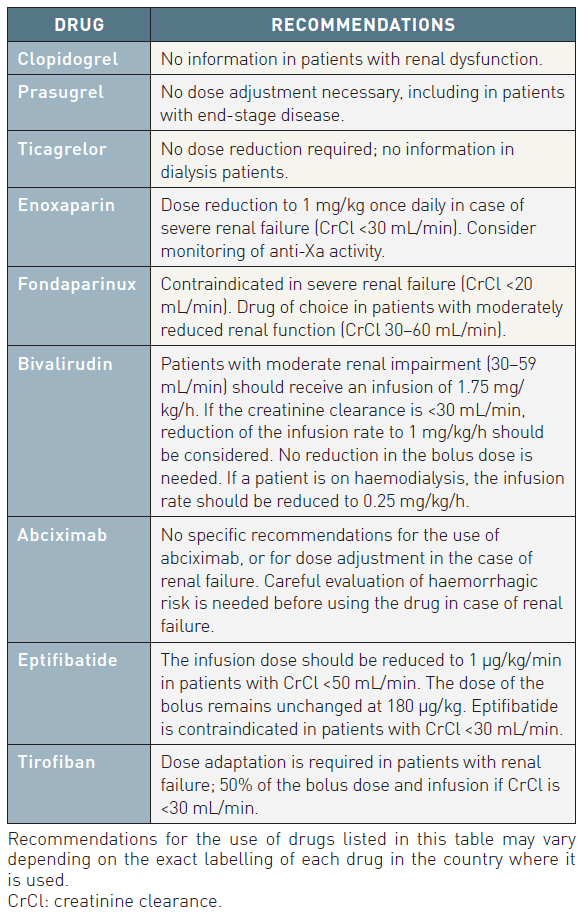

Renal dysfunction is present in 30%–40% of patients with NSTE-ACS. CKD is an independent predictor of short- and long-term mortality and of major bleeding in patients with NSTE-ACS. Despite the fact that patients with NSTE-ACS and CKD are frequently underrepresented in clinical trials, there is no particular reason not to treat these patients just like patients without renal dysfunction. However, caution is needed with respect to the antithrombotic treatment in terms of bleeding complications See recommendations in Table 10. Registry data show that CKD patients are often overdosed with antithrombotics, particularly anticoagulants and GP IIb/IIIa receptor inhibitors, and are therefore more prone to bleed [64]. In case of severe renal failure, when fondaparinux or enoxaparin are contraindicated, UFH should be used since its activity is easily monitored with aPTT, and it can be quickly neutralised in the event of bleeding.

Data on the impact of an invasive strategy on clinical endpoints in patients with NSTE-ACS and CKD are not available, as many trials of revascularisation in NSTE-ACS excluded patients with CKD. In a large registry as well as in sub-studies of trials in the setting of NSTE-ACS, outcome of CKD patients improved with invasive management, not only at end-stage renal failure but also at the stage of moderate CKD. In observational studies an early invasive therapy is associated with better 1-year survival in patients with mild-to-moderate renal insufficiency, but the benefit decreases with worse renal function, and is uncertain in those with renal failure or on dialysis.

Patients with CKD are at risk of contrast-induced nephropathy. This risk is increased in patients with older age and diabetes. In case of urgent angiography the risk of contrast-induced nephropathy must be balanced against the ischaemic risk. Hydration before (12 hours) and following (24 hours) angiography and/or angioplasty is the strategy that has been shown to have the greatest impact in reducing the risk of this nephropathy. The amount of contrast should be maintained <4 mL/kg.

Left ventricular systolic dysfunction and heart failure

Heart failure is one of the most frequent and deadly complications of NSTE-ACS. In patients presenting with heart failure without chest pain, ACS may be difficult to diagnose due to a troponin rise related to acute heart failure. In these patients it might be impossible to distinguish acute heart failure alone, from NSTEMI complicated with heart failure. Coronary angiography may be helpful to differentiate the two conditions. Patients with NSTE-ACS and heart failure less frequently receive evidence-based therapies, including beta-blockers and ACE-inhibitors or angiotensin receptor blockers (ARBs), coronary angiography and revascularisation. All recommendations derived from post-MI studies, may be extrapolated to NSTE-ACS patients with heart failure and are found in the respective guidelines [65].

Extreme body weights

Low body weight is associated with an increased risk of death or MI, and particularly of bleeding, which is frequently due to inappropriate dosing of antithrombotic drugs. Although obesity is associated with a higher risk of coronary events in the population, obese patients with NSTE-ACS show better in-hospital and 1-year outcomes, including lower bleeding risk, which has been called the “obesity paradox” [66].

Non-obstructive coronary artery disease

A sizeable proportion of patients (about 15%) with NSTE-ACS have normal coronary arteries or non-obstructive lesions (MINOCA). The pathophysiology of NSTE-ACS is not homogeneous and possible mechanisms include: a coronary artery spasm (Prinzmetal’s angina), an intramural plaque complicated by acute thrombosis with subsequent recanalisation, coronary emboli, spontaneous coronary dissection (SCAD) and “syndrome X”.

In patients admitted with suspected NSTE-ACS, the demonstration of normal or near-normal coronary arteries at angiography challenges the diagnosis. However, ST-segment changes and release of biomarkers in patients with typical chest pain and patent coronary arteries without significant stenotic lesions may be due to true necrosis rather than false-positive results. This tends to be more common in women. Relevant atherosclerotic burden may be present even in the absence of angiographically significant stenoses because it may occur in a diffuse manner and lead to arterial wall remodelling in which the wall thickens and expands outwards without encroaching on the lumen. The prognosis of these patients appears to be better than that of patients with NSTE-ACS and significant coronary atherosclerosis, and they therefore merit optimal antithrombotic therapy and secondary prevention with antiplatelet agents and statins.

Prinzmetal’s variant angina refers to a frequently unrecognised syndrome of chest pain secondary to myocardial ischaemia that is not precipitated by physical exertion or emotional stress, and is associated with transient ST-segment elevation. The underlying pathological mechanism is spasm of an epicardial coronary artery that may occur at sites of severe focal stenoses, but typically is seen on angiography at sites of minimal atherosclerotic disease. The spasm may be spontaneous or provoked by an acetylcholine, a “cold pressor” test, or hyperventilation. The mainstay therapy for Prinzmetal’s angina is the administration of calcium antagonists, shown to be effective in preventing coronary spasm, alone or in combination with nitrates. They should be prescribed at maximally tolerated doses.

Another reason might be a spontaneous coronary dissection. The true prevalence of SCAD remains uncertain, primarily because it is an underdiagnosed condition. Missed diagnoses are driven by a low suspicion of ACS in young women even in the presence of classic presenting symptoms, limitations of current coronary angiographic techniques, and lack of clinician familiarity with the condition. SCAD most commonly occurs in patients with few or no cardiovascular risk factors. Recent series using careful diagnostic criteria that exclude iatrogenic, traumatic, and atherosclerotic dissection suggest that SCAD may be a cause of up to 1% to 4% of ACS cases overall [105, 106, 107]. It occurs more often in women and may be the cause of ACS in up to 35% of ACS in women ≤50 years of age. It is the most common cause of pregnancy-associated MI (43%) [108]. Intracoronary imaging has become instrumental to aid the diagnosis of SCAD in angiographically subtle or nondiagnostic cases. It can detect intimal tear, false lumen, and intraluminal thrombi, although its resolution may not be adequate to clearly identify all such abnormalities related to SCAD. No comprehensive prospective studies have routinely performed angiographic restudy after SCAD, but observational data have indicated angiographic “healing” of SCAD lesions in the majority of patients (70%–97%) who were selectively restudied weeks to months after a conservatively managed index episode. In current clinical practice, the duration of hospitalization after ACS is therefore largely dictated by the management strategy for the patient and the ongoing symptoms. A prolonged period of in-hospital monitoring (3–5 days) is justified as part of a conservative strategy for patients suffered from ACS caused by SCAD to observe for a small but important (5%–10%) early hazard of dissection extension or new recurrent SCAD. If clinical worsening occurs despite conservative management (worsening of symptoms with evidence of ischemia by electrocardiography or significant arrhythmia), repeat angiography should be performed and emergency revascularization undertaken to relieve ischemia if feasible [109].

The term “syndrome X” is used to describe patients with angina precipitated by exercise, ST-segment depression on stress test, and non-obstructed coronary arteries at angiography. There is growing evidence that such patients often have an increased response to pain. Because the prognosis is excellent, the most important therapy is reassurance and symptom relief, for which nitrates, beta-blockers, and calcium antagonists have been found to be effective.

Apical ballooning (Tako-Tsubo cardiomyopathy) may present clinically as STEMI or NSTE-ACS and is characterised by normal coronary arteries at angiography accompanied by apical and sometimes medioventricular or basal akinesia unrelated to the distribution of a coronary artery. It is more frequent in women and occurs typically after major emotional stress. The LV dysfunction is generally reversible within days to weeks.

In rare cases, NSTE-ACS with a normal or near-normal coronary arteriogram is linked to coronary embolism, due to atrial fibrillation or atrial flutter. As atrial fibrillation is often clinically unrecognised, the frequency of this mechanism of NSTE-ACS may be underestimated.

Regarding to this additional diagnostic such as MR-scan should always be considered in patients with NSTE-ACS if reason could not be indentified by coronary angiography and intravascular imaging.

Bleeding and transfusion

Bleeding is the most frequent non-ischaemic complication observed in the management of NSTE-ACS, as well as in other clinical settings such as STEMI, PCI and cardiac surgery.

Because of the lack of a universally accepted definition for bleeding, its true frequency is still difficult to assess across trials and registries. Irrespective of the scale used to assess bleeding, many reports confirmed the dose-dependent association between bleeding and risk of death or other ischaemic events. Major bleeding was shown to be associated with a fourfold increase in the risk of death, a fivefold increase in risk of recurrent MI, and a threefold increase in risk of stroke at 30 days. Bleeding risk is highest during the first 30 days, but long-term exposure to potent antiplatelet therapy leads to a persistent increase in the risk of bleeding.

The independent predictors of major bleeding, established from trials and registries, are baseline characteristics, particularly age, female sex, history of bleeding, baseline haemoglobin, diabetes and renal insufficiency. Bleeding risk increases with the number of antithrombotic drugs in use, including anticoagulants, aspirin, P2Y12 receptor inhibitors, and particularly GP IIb/IIIa receptor inhibitors, as well as use of the femoral rather than the radial approach [8, 67, 68].

Management of bleeding complications

Prevention of bleeding has become as important a target as is the prevention of ischaemic events. Therefore, risk assessment in patients with NSTE-ACS needs to address the risk of both thrombotic and bleeding complications. Prevention of bleeding encompasses the choice of safer drugs, appropriate dosage (taking into account age, sex, and CrCl), reduced duration of antithrombotic treatment, use of a combination of antithrombotic and antiplatelet agents according to proven indications, and the choice of a radial over femoral approach if an invasive strategy is used. Use of closure devices and bivalirudin rather than conventional anticoagulants plus GP IIb/IIIa receptor inhibitors was shown to impact favourably on bleeding risk in a pooled analysis of data from the ACUITY and HORIZONS studies [69].

Antiplatelet and/or anticoagulation agents should not be reintroduced until strict control of the haemorrhage has been obtained for at least 24 hours when stopped due to an acute bleeding event.

Impact of blood transfusion

Blood transfusion has detrimental effects (excess of death and MI, but also lung infections) in many clinical settings, including ACS, PCI, cardiac surgery, and acute critical care [70]. Blood transfusion has a favourable impact if given for haematocrit values <25%, but not above this value [70]. In this regard, a restrictive transfusion policy with a trigger set at 7 g/dL, and a target haemoglobin level of 9–10 g/dL, was shown to derive better clinical outcome than a liberal transfusion policy in the setting of acute care.

Thrombocytopaenia

Thrombocytopaenia can occur during treatment of NSTE-ACS. Thrombocytopaenia is defined as a decrease in platelet count to <100, 000/μL or a drop of >50% from baseline platelet count.

In the ACS setting, there are two main types of drug-induced thrombocytopaenia, i.e., HIT and GP IIb/IIIa receptor inhibitor-induced thrombocytopaenia, with a different prognosis for each type. Heparin-induced thrombocytopaenia must be suspected when there is a drop of >50% in platelet count, or a decrease in platelet count to <100, 000/μL. It occurs in up to 15% of patients treated with UFH, less frequent under LMWH, and is not seen with fondaparinux. Immediate interruption of UFH or LMWH therapy is mandatory as soon as HIT is suspected. Alternative antithrombotic therapy must be introduced, even in the absence of thrombotic complications.

GP IIb/IIIa receptor inhibitor-induced thrombocytopaenia has been reported to occur at rates ranging from 0.5–5.6% in clinical trials, depending on the compound used. Major bleeds are rare, but may be life-threatening. If platelet counts drop below 10, 000/μL, discontinuation of GP IIb/IIIa receptor inhibitors as well as UFH or enoxaparin is recommended. Platelet transfusions are indicated in case of bleeding. Fibrinogen supplementation with fresh frozen plasma or cryoprecipitate either alone or in combination with platelet transfusion has also been advocated.

Interventions for non-ST-segment elevation acute coronary syndromes

UPDATED REFERENCES

UPDATED REFERENCES

Summary

Introduction

EPIDEMIOLOGY AND NATURAL HISTORY

Diagnosis

CLINICAL PRESENTATION

DIAGNOSTIC TOOLS

Assessment of prognosis

ELECTROCARDIOGRAM INDICATORS

BIOMARKERS

RISK SCORES

Treatment

ANTI-ISCHAEMIC AGENTS

ANTIPLATELET AGENTS

ANTICOAGULANTS

CORONARY REVASCULARISATION

SPECIAL POPULATIONS AND CONDITIONS

Management strategy

EARLY INVASIVE STRATEGY (<24 HOURS AFTER FIRST MEDICAL CONTACT)

INVASIVE STRATEGY (<72 HOURS AFTER FIRST MEDICAL CONTACT)

Personal perspective - Christian w. Hamm

Interventions for non-ST-segment elevation acute coronary syndromes

Summary

Introduction

EPIDEMIOLOGY AND NATURAL HISTORY

Diagnosis

CLINICAL PRESENTATION

DIAGNOSTIC TOOLS

Assessment of prognosis

ELECTROCARDIOGRAM INDICATORS

BIOMARKERS

RISK SCORES

Treatment

ANTI-ISCHAEMIC AGENTS

ANTIPLATELET AGENTS

ANTICOAGULANTS

CORONARY REVASCULARISATION

SPECIAL POPULATIONS AND CONDITIONS

Management strategy

EARLY INVASIVE STRATEGY (<24 HOURS AFTER FIRST MEDICAL CONTACT)

INVASIVE STRATEGY (<72 HOURS AFTER FIRST MEDICAL CONTACT)

Personal perspective - Christian w. Hamm

RELATED MEDIA

REFERENCES

SHARE YOUR COMMENT

SHOWING 1 COMMENT
